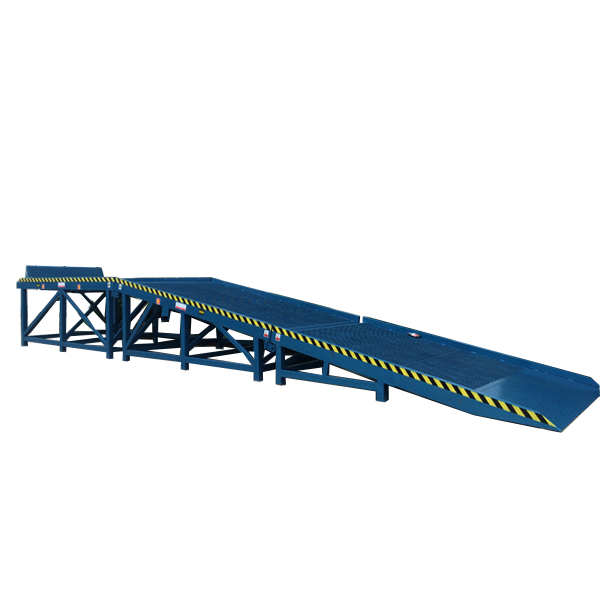

Mobile boarding bridge
Mobile boarding bridge
Mobile boarding bridge
Mobile boarding bridge
Mobile boarding bridge
Mobile boarding bridge
Mobile boarding bridge
Mobile boarding bridge

Mobile boarding bridge

Scope of Application:

Mobile boarding bridge used in the scene without platform or need flexible loading and discharging. The main role is to put up a bridge between the dock and the transport vehicles, facilitate the fork trucks operation, realizing the loading and discharging. One side connect with the platform, the other side rest on the rear edge of the car.
Product video

Technical Characteristics

  • Automation

    Adopting an automatic weighing system
  • User-Friendly Design

    The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design
  • Quality Assurance

    All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

Mobile boarding bridge used in the scene without platform or need flexible loading and discharging. The main role is to put up a bridge between the dock and the transport vehicles, facilitate the fork truck’s operation, realizing the loading and discharging. One side connect with the platform, the other side rest on the rear edge of the car. This one can be special designed on the dimensions, load bearing and other aspects according to customers’ different requirements, different models and the carriage changes during the loading. Perfect design, reliable quality.

Technical Parameters

ModelCapacity(T)Boundary dimension(MM)Weight(Kg)Gradient(°)
DCQY6611000*2000230015-20
DCQY8811000*2000260015-20
DCQY101011000*2000300015-20
DCQY121211000*2000320015-20
DCQY151511000*2000350015-20
