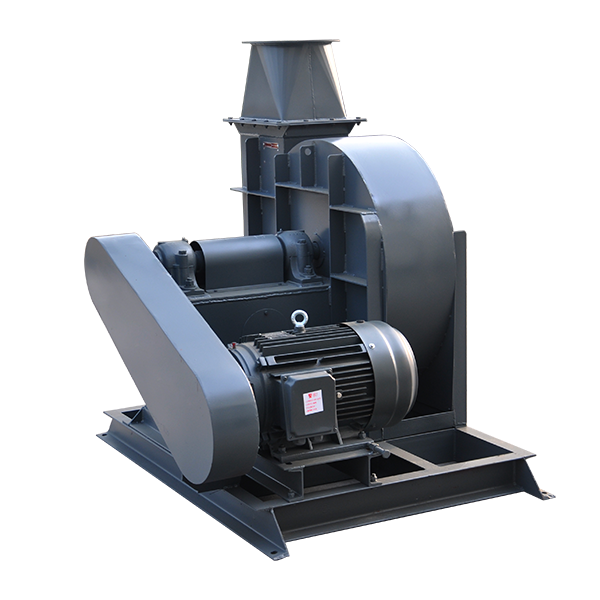

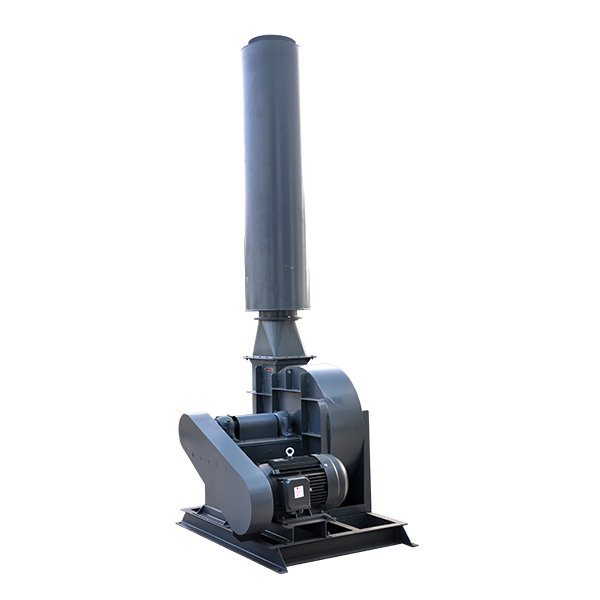

Cardboard & Paper Tube Shredder Machine

Scope of Application：

Suitable for crushing and recycling the big size corrugated cardboard and paper tube. After crushing the cardboard scrap will be sucked through air blower to baler for copressing and baling.

Product video

Technical Characteristics

Automation

Adopting an automatic weighing system
User-Friendly Design

The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design
Quality Assurance

All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

Suitable for crushing and recycling the big size corrugated cardboard and paper tube. After crushing the cardboard scrap will be sucked through air blower to baler for copressing and baling.

Technical Parameters

model	wind pressure (Pa)	air volume (m³/h)	rotating speed (r/min)	power (Kw)	air inlet pipe diameter(mm)	outlet pipe diameter(mm)
JP-6.85CG-18.5KW	2374-3110	4704-8939	1900	18.5Kw	Ø250	Ø250
JP-6.85CG-22KW	2900-3800	5200-9880	2100	22Kw	Ø250	Ø300
JP-6.85CG-30KW	3478-4558	5695-10821	2300	30Kw	Ø300	Ø300
JP-6.85CG-37KW	3947-5172	6066-11526	2500	37Kw	Ø300	Ø350
JP-9C-45KW	4098-5368	6870-13057	1900	45Kw	Ø350	Ø350
