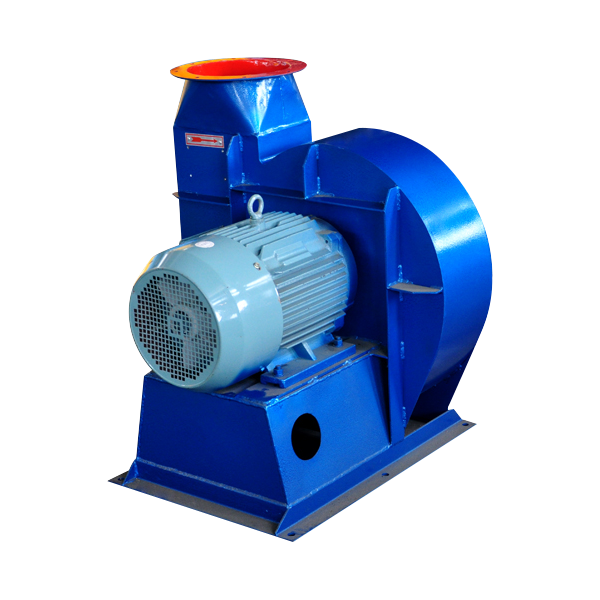

Self propelled direct connect shredding fan
Self propelled direct connect shredding fan

Self propelled direct connect shredding fan

Scope of Application:

The self propelled directly connected shredding fan is single inlet in the center featured in high wind pressure high efficiency good crushing effect long conveying distance blade wear resistance energy saving etc.
Product video

Technical Characteristics

  • Automation

    Adopting an automatic weighing system
  • User-Friendly Design

    The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design
  • Quality Assurance

    All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

The self propelled directly connected shredding fan is single inlet in the center featured in high wind pressure high efficiency good crushing effect long conveying distance blade wear resistance energy saving etc.;

* With crushing function realize even feeding;

* The structure is not only equipped with four flying blades on the impeller but also equipped with a fixed ring-tooth blade at the end of the inlet;

* Model selection is mainly determined by the technical parameters of waste paper volume transportation distance etc.

Technical Parameters

Model Air pressure(Pa)Air volume (m³/h)Rotation speed (r/min)Power (Kw)Air inlet pipe diameter(mm) Air outlet pipe diameter(mm)
JP-4.5A-5.5KW2530-31261879-385629005.5KwØ2002-Ø150Ø200
JP-4.8A-7.5KW2714-35582183-415029007.5KwØ2002-Ø150Ø200
JP-4.9A-11KW2828-37082627-4994290011KwØ2202-Ø150Ø220
JP-5.2A-15KW3185-41753140-5968290015KwØ2502-Ø150Ø250
JP-5.35A-18.5KW3372-44203420-6500290018.5KwØ2502-Ø180Ø250
JP-5.6A-22KW3694-48423922-7455290022KwØ2502-Ø180Ø300
