Product video
PRODUCT DETAILS

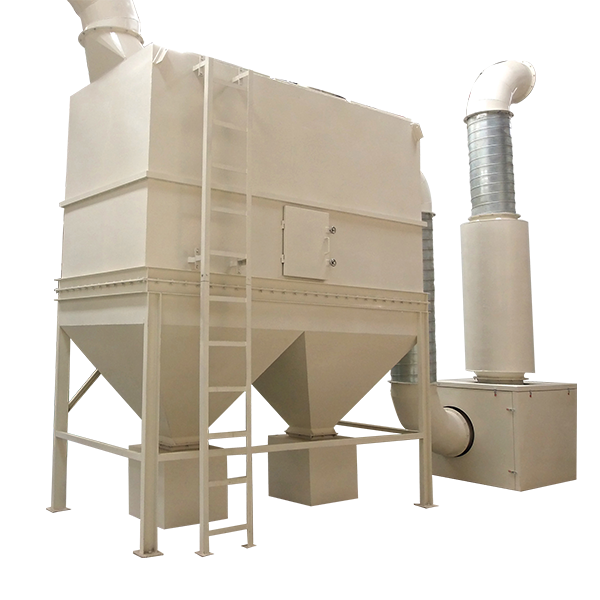

* Bag type filter is a dry dust filter device, generally using a round bag, and it has side inlet and down inlet according to the dusty air movement direction;
* Bag filter system is mainly composed of assembled box, filter bag, assembled cage, pulse spraying system, ash discharging system, etc;
* Bag filter is simple in structure and easy to maintain.
Technical Parameters
| Model | JP-FS48 | JP-FS96 | JP-FS128 | JP-FS150 | JP-FS256 |
| Filter bag quantity | 48 | 96 | 128 | 150 | 256 |
| Filter bag size(mm) | Φ130*1250 | Φ130*1500 | Φ140*1500 | Φ150*2000 | Φ150*2500 |
| Air blower size（Kw/Hp） | 5.5Kw/7.5Hp | 11Kw/15Hp | 18.5Kw/22Hp | 30Kw/37.5Hp | 45Kw/60Hp |
| Capacity（m³/h） | 5000-80000m³/H | 10000-15000m³/H | 20000-25000m³/H | 30000-35000㎡/H | 45000-55000m³/H |
