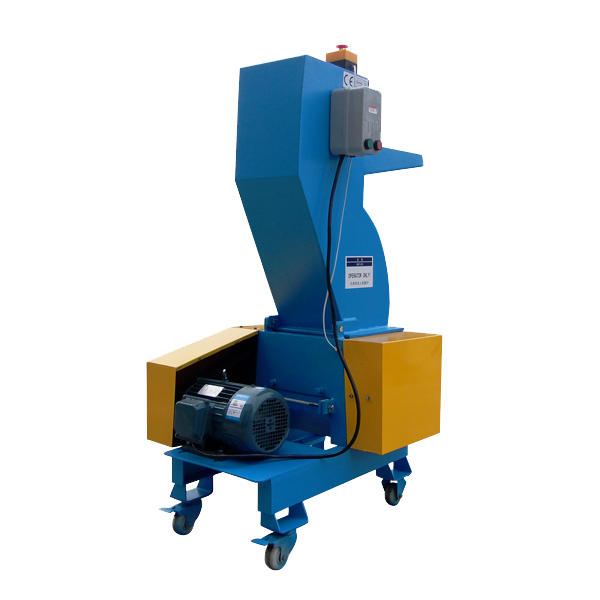

Glass Crushing Machine
Glass Crushing Machine
Glass Crushing Machine
Glass Crushing Machine

Glass Crushing Machine

Scope of Application：

This machine is mainly suitable to crushing PCPO with long length, for example: glass bottle, plastic bottle, plastic pipe and etc.
Product video

Technical Characteristics

  • Automation

    Adopting an automatic weighing system

  • User-Friendly Design

    The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design

  • Quality Assurance

    All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

* The material can be feed continuously, do not need to pre-cut.

* This model can feed material automatically by conveyor, simple operating and maintaining.

Technical Parameters

modelJP-SS3
Rotor Ø (mm) approximate   (mm)200
Rotor knife qty3
Fixed knife qty2
Diameter of sieve hole(ellipse)(W*L)mmmaxφ40   miniφ20
Capacity(Kg/H)50-120Kg/H
Power （Kw/Hp）3Kw/4Hp
Hopper opening (L*W)355*265
Weight (Kg)300
Dimension(L*W*H)630*840*1453
