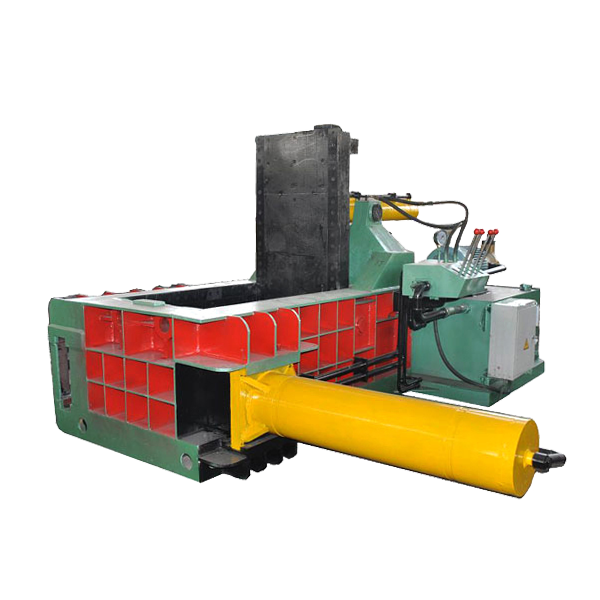

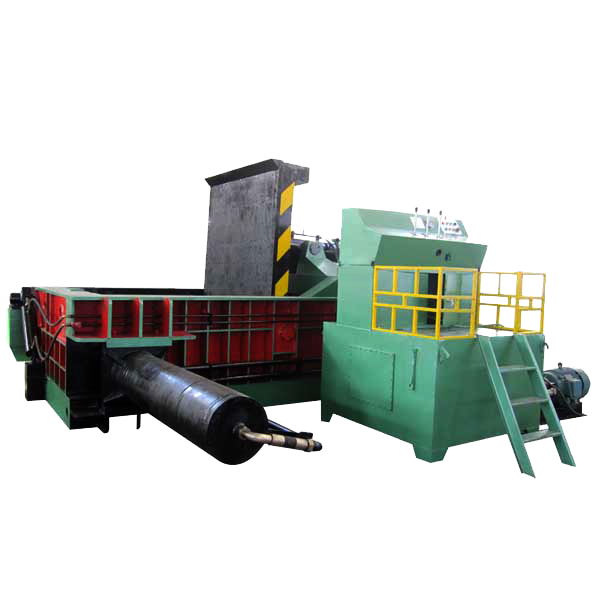

Metal Baler Machine
Metal Baler Machine
Metal Baler Machine
Metal Baler Machine

Metal Baler Machine

Scope of Application：

Apply to compressing of all kinds of metal scrap into blocks (steel shavings ,waste steel ,waste aluminum ,waste cooper, waste stainless steel, and scraped car etc. ) . Widely used for steel mill, recycling companies, lathe turnings, scraps, metal recycling, and nonferrous metal, ferrous metal smelting industries.
Product video

Technical Characteristics

  • Automation

    Adopting an automatic weighing system

  • User-Friendly Design

    The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design

  • Quality Assurance

    All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

* All models adopt hydraulic drive,manual control.

* Bales come out by overturning.

* Distributive hydraulic principle, improves efficiency.

* The feeding chamber has cutting function to prevent additive materials caused by carelessness and safety accident.

* Adopt double pressure protection device.

Technical Parameters

ModelJPY81-100AJPY81-100BJPY81-125AJPY81-125BJPY81-135AJPY81-135BJPY81-160A/BJPY81-200A/BJPY81-250AJPY81-250BJPY81-315AJPY81-315BJPY81-400AJPY81-400B
Fominal Force100T100T125T125T135T135T160T200T250T250T315T315T400T400T
Chamber size1000*600*500mm1000*600*500mm1200*700*600mm1200*700*600mm1400*600*600mm1400*600*600mm1600*1000*700mm/1600*1000*800mm1600*1200*800mm2000*1400*10002000*1400*10002600*1750*1200mm2600*2000*1200mm2600*2000*1200mm3000*2000*1200mm
Bale section200*200mm200*200mm250*250mm250*250mm600*240mm600*240mm350*350mm450*450mm/400*400mm400*400450*450600*600mm600*600mm600*600mm600*600mm
Power11KW/15HP11KW/15HP15KW/20HP15KW/20HP22KW/30HP22KW/30HP22KW/30HP30KW/40HP45Kw/60Hp45Kw/60Hp75KW/100HP75KW/100HP2*45KW/120HP2*45KW/120HP
Operation methodManual ValvePLC AutomaticManual ValvePLC AutomaticManual ValvePLC AutomaticManual Valve//PLC AutomaticManual Valve/PLC AutomaticManual ValvePLC AutomaticManual ValvePLC AutomaticManual ValvePLC Automatic
Output manneOverturning blockLateral pushing blockOverturning blockLateral pushing blockOverturning blockPushing blockOverturning block/侧Pushing blockOverturning block/侧Pushing blockOverturning blockLateral pushing blockOverturning blockLateral pushing blockOverturning blockLateral pushing block
