Product video

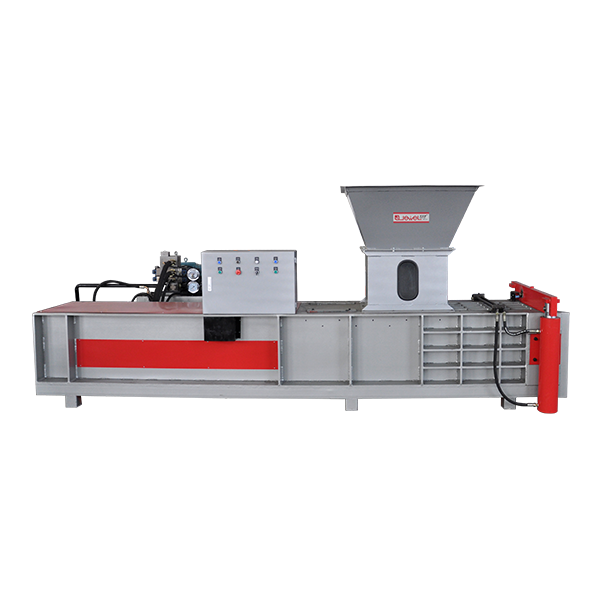

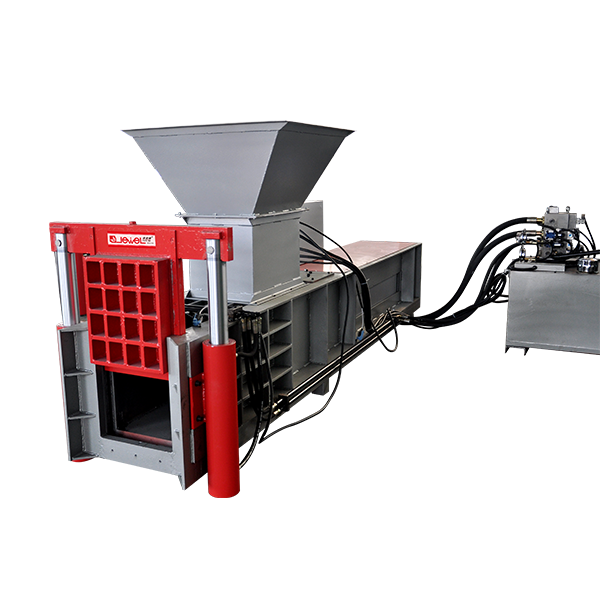

PRODUCT DETAILS
* Hydraulic driven ensures stable performance;
* Equipped with detective feeding sensor, convenient for maintenance;
* Can achieve unmanned production when equipped with material feeding conveyor.
Application: suitable for compressing wood sawdust, granules, power and other material into block, convenient for store, save store and transportation cost.
Technical Parameters
| Model | JPW-AK60 | JPW-AK100 | JPW-AK150 | JPW-AK200 |
| Hydraulic power（Ton） | 60 | 100 | 150 | 200 |
| Bale size（W*H*L）mm | 300*300*（200-300） | 320*320*（200-250） | 350*350*（200-300） | 450*450*（200-300） |
| Feed opening size (L*H) mm | 500*300 | 500*320 | 500*350 | 700*480 |
| Bale weight（Kg） | 5-10 | 5-15 | 10-16 | 20-35 |
| Capacity（Ton/hr） | 0.2-0.5 | 0.4-0.8 | 0.65-1 | 1.5-1.8 |
| Voltage（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 15Kw/20Hp | 18.5Kw/25Hp | 22Kw/30Hp | 30Kw/40Hp |
| Machine size（L*W*H）mm | 3900*900*1350 | 4000*920*1350 | 4200*950*1399 | 4260*1100*1800 |
| Machine weight（Kg） | 2100 | 2600 | 3000 | 4000 |
| Similar materials | Paper powder | Fiber | Sawdust | Wood flour |

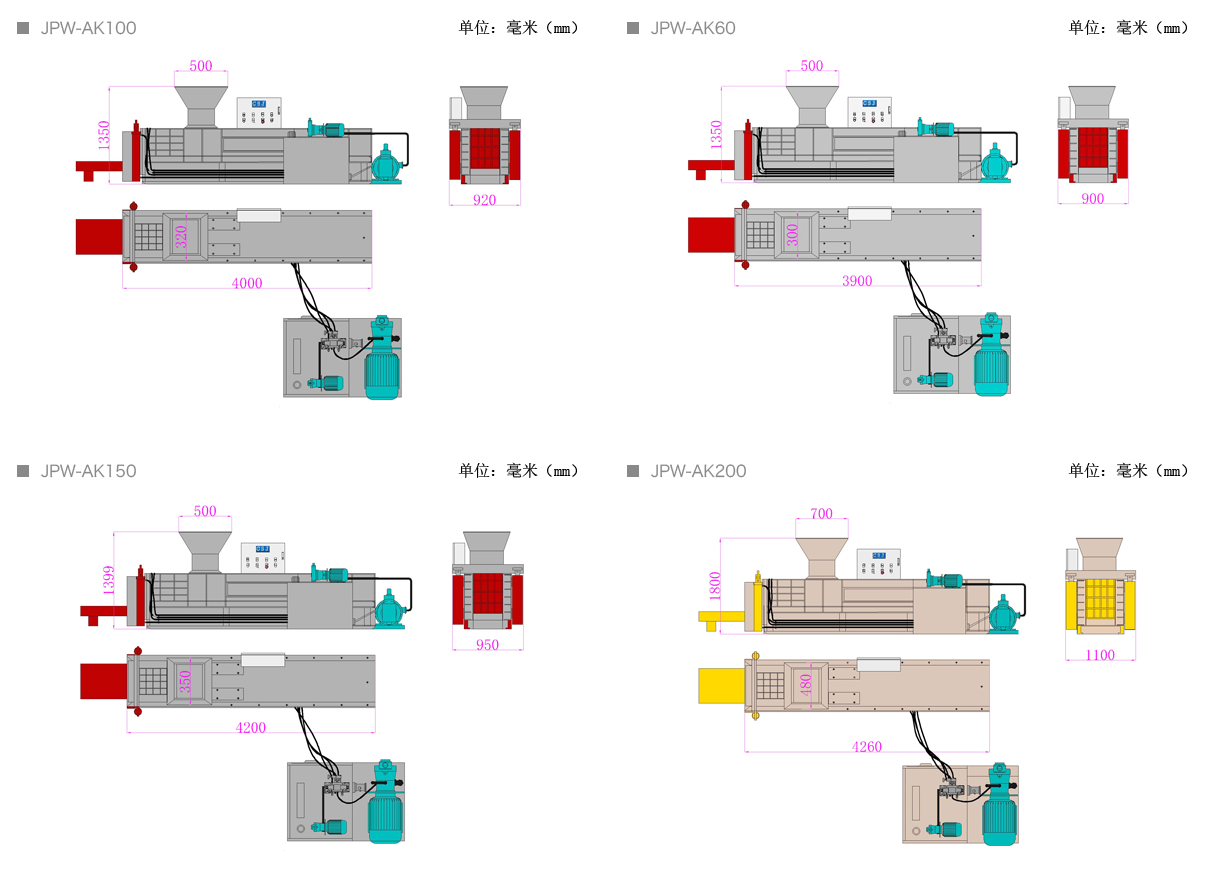

Dimensions
