Product video
PRODUCT DETAILS
* Bagging is completed at one time, which is convenient for storage and reduces transportation costs;
* Adopt PLC control system, automatic compression, manual bagging, cycle work, easy and convenient;
* Can choose auto or manual mode for material feeding;
* Can choose automatic bagging system as an option;
* Application: compressing and bagging for wood chips, wood shavings, corn silage, rice husk, cotton seed hulls, licorice, fiber, corncob, straw, hay, hops, etc.
Technical Parameters
| Model | JPW-KT90 | JPW-KT110 | JPW-KT140 | JPW-KT180 |
| Hydraulic power（Ton） | 40/50 | 50/60 | 60/80 | 100/120 |
| Ejection chamber size（L*W*H）mm | 700*394*326 | 700*394*326 | 700*394*326 | 700*450*270 |
| Feed opening size（L*W）mm | 1200*700 | 1200*700 | 1200*700 | 1200*700 |
| Capacity（Ton/hr） | 1.5-1.8 | 2-2.5 | 2.5-3 | 2.5-3 |
| Voltage(can be customized)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 15Kw/20Hp | 18.5Kw/25Hp | 22Kw/30Hp | 30Kw/40Hp |
| Machine size（L*W*H）mm | 3920*2880*1700 | 3920*2900*1700 | 3920*2880*1700 | 4250*3100*1700 |
| Machine weight（Kg） | 2400 | 2700 | 3000 | 4300 |
| Package size（W*H）mm | 740*1150 | 740*1150 | 740*1150 | 740*1150 |

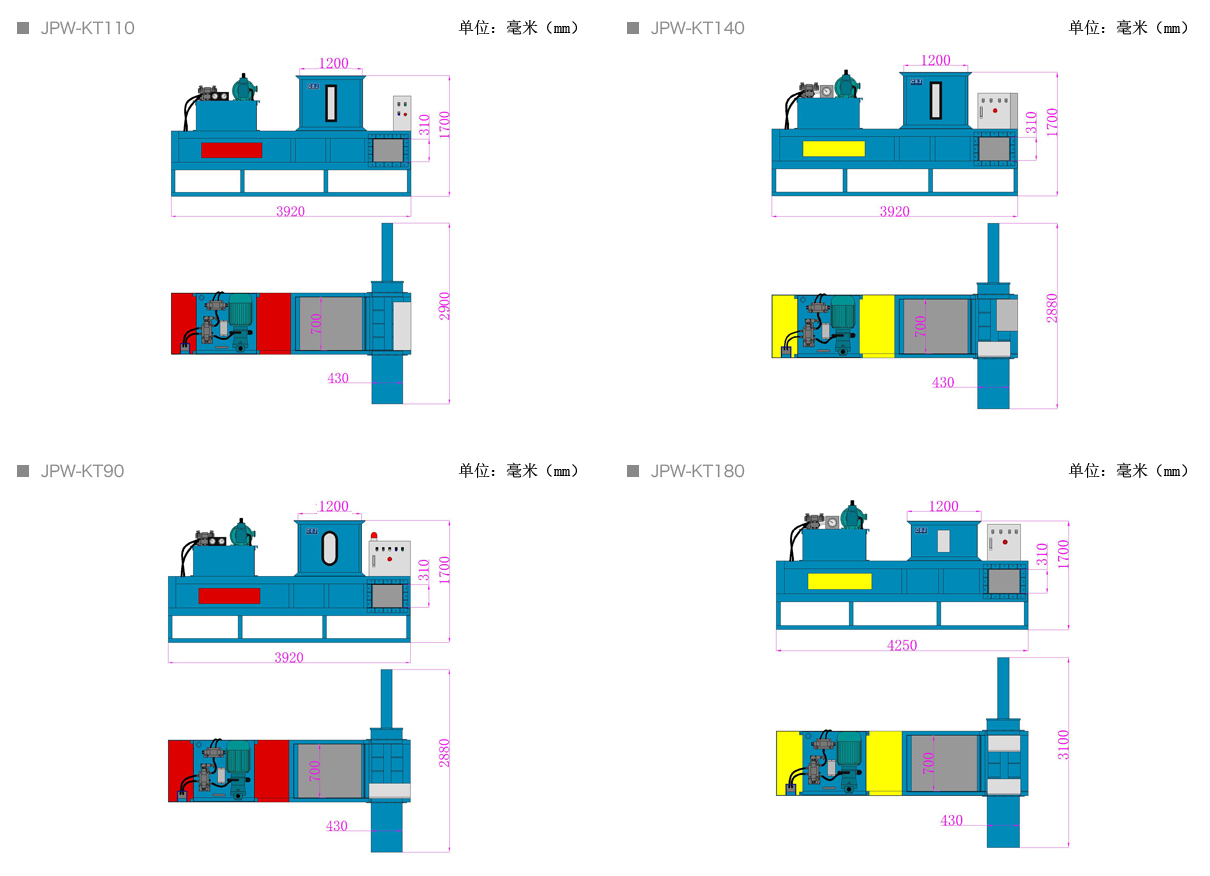

Dimensions
