PRODUCT DETAILS

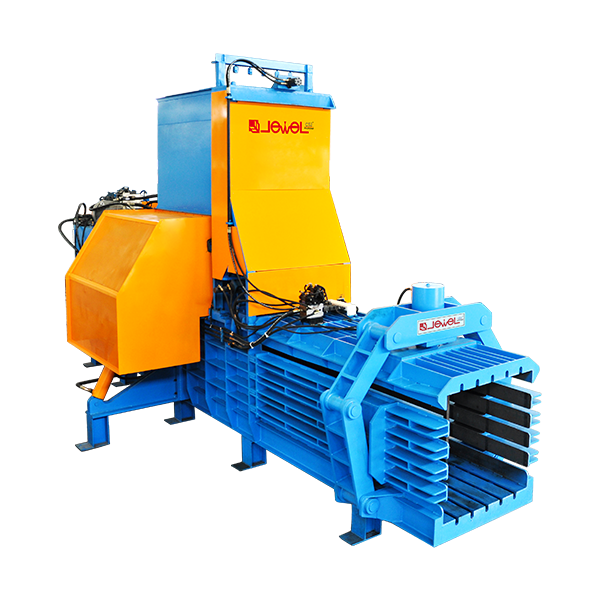

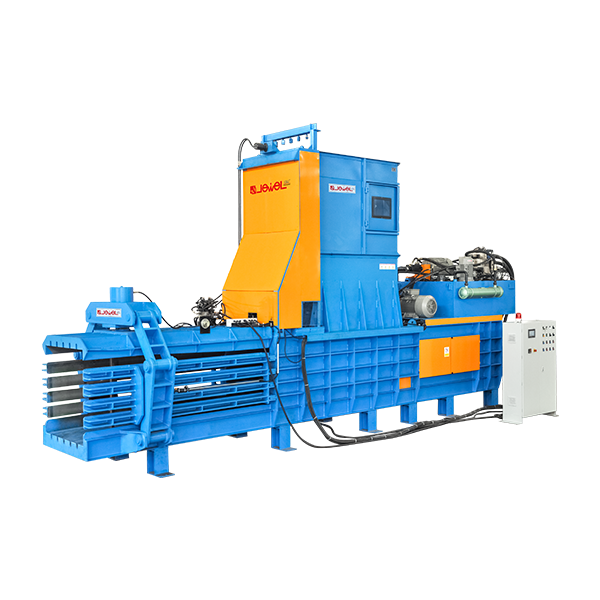

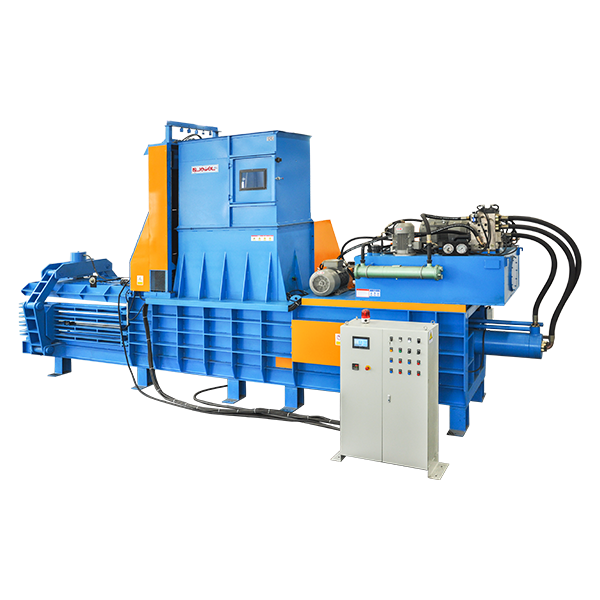

Fully automatic horizontal hydraulic vertical tying baler is used in plastic products plastic rubber fiber garbage disposal and other industries.
*Using vertical inserting and bundling bale structure it is not easy to be fallen off and loosen.
*According to various materials a shredder bottle perforator carton crusher etc. can be installed at the feed opening to facilitate compression and improve efficiency.
*Using a special pre-compression device to make the density of the bales higher and the bale shape more perfect.
Technical Parameters
| Model | JPW80QT-S | JPW100QT-S | JPW120QT-S | JPW150QT-S | JPW200QT-S | JPW250QT-S |
| Compression force（Ton） | 80 | 100 | 120 | 150 | 200 | 250 |
| Bale size（W*H*L）mm | 1100*800*(500-2100) | 1100*1100*(500-2100) | 1100*1100*(500-2100) | 1100*1100*(500-2100) | 1100*1200*(500-2100) | 1100*1200*(500-2100) |
| Feed opening size（L*W）mm | 1500*1100 | 1800*1100 | 2000*1100 | 2200*1100 | 2400*1100 | 2400*1100 |
| Bale lines | 4 | 4 | 4 | 5 | 5 | 5 |
| Capacity（Ton/Hr） | 5-10 | 7-12 | 8-15 | 10-18 | 12-22 | 15-25 |
