PRODUCT DETAILS

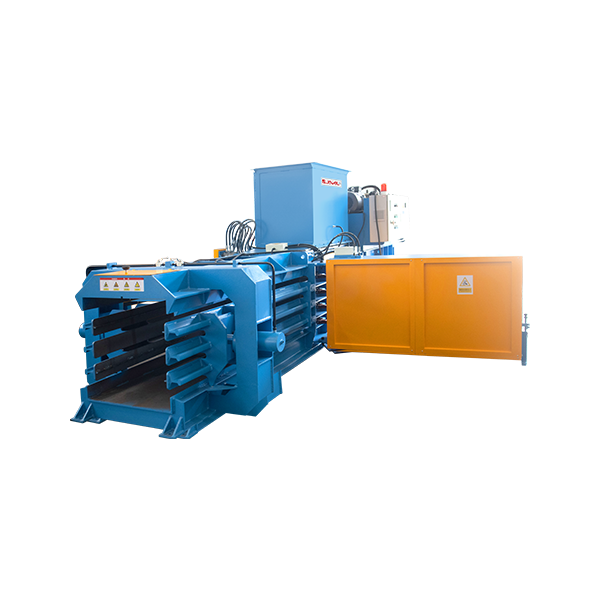

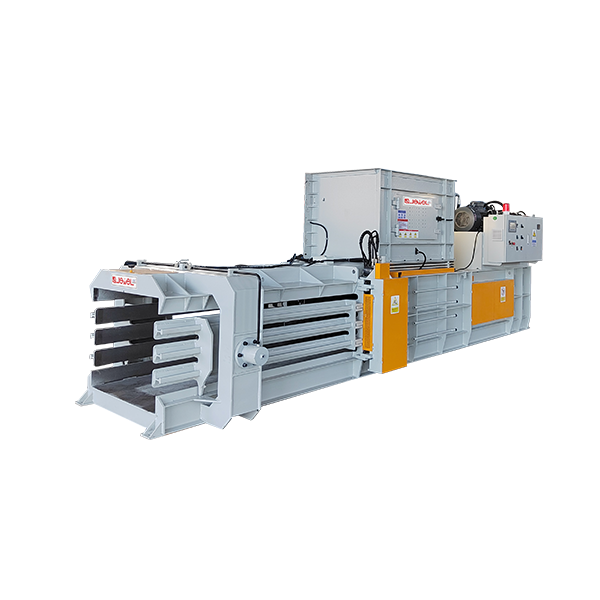

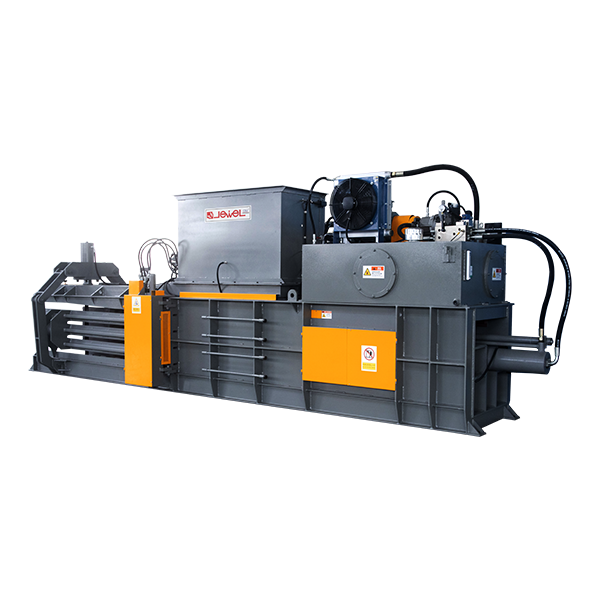

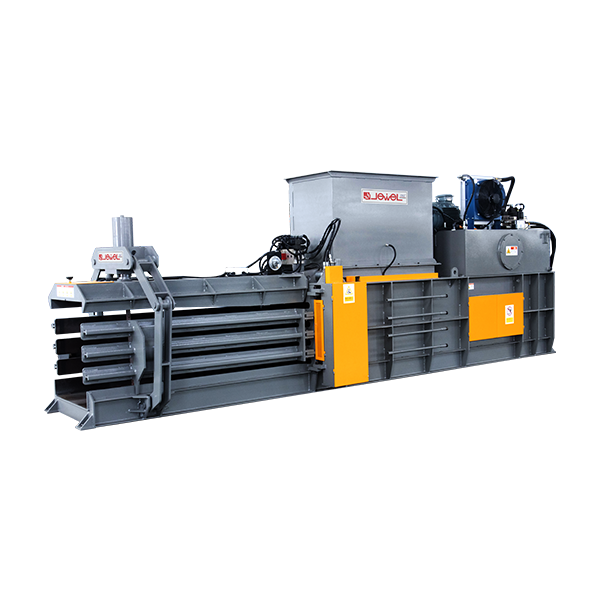

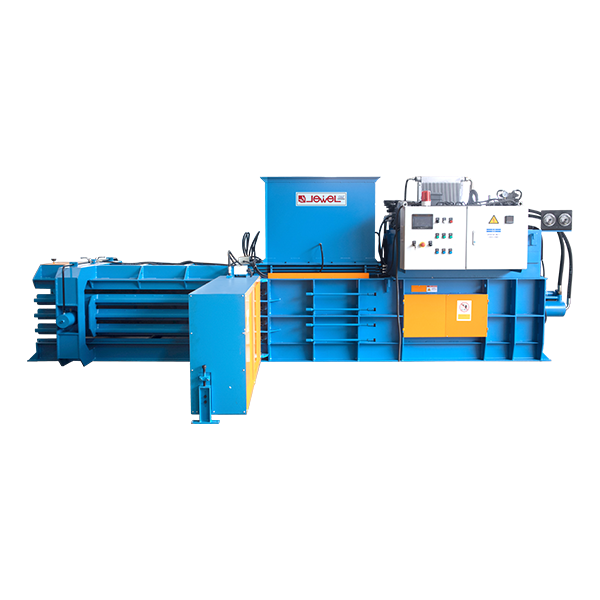

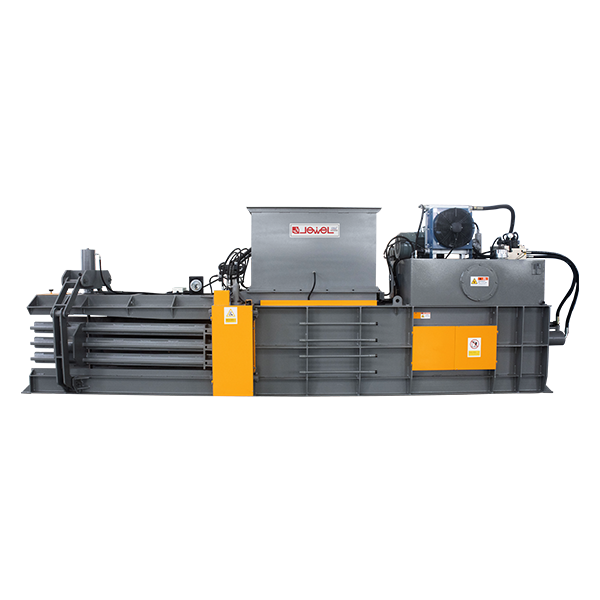

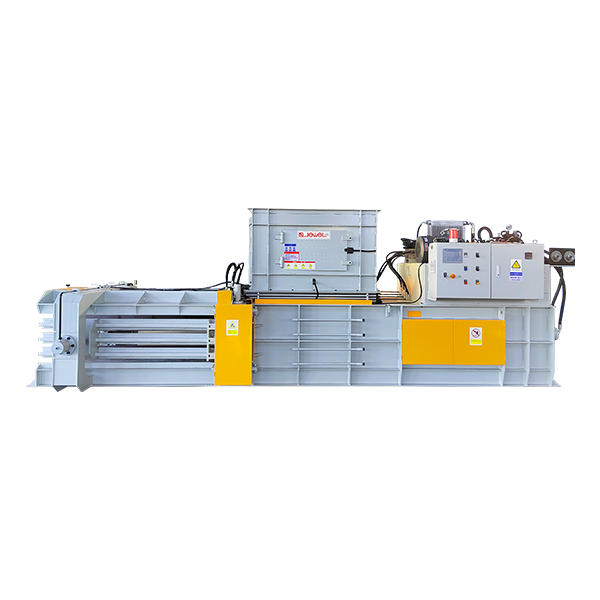

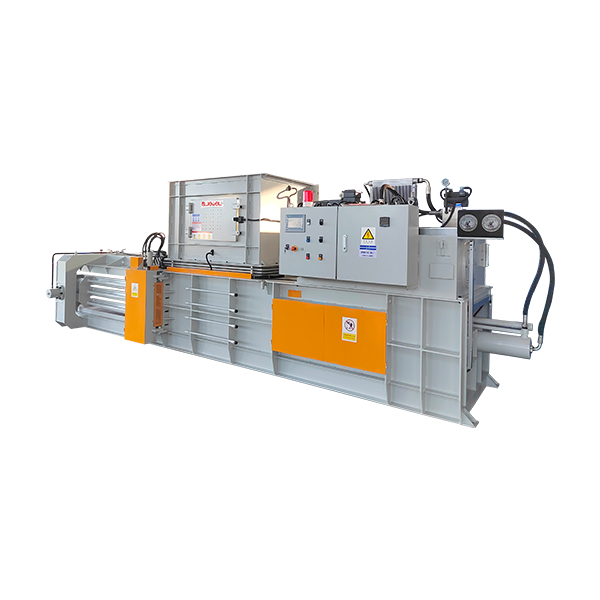

Horizontal full automatic model automatic wire bundlingwidely used in packaging plants carton factories printing plants garbage sorting stations professional recycling stations and other places; suitable for waste paper cardboard plastics fabrics fibers household garbage etc. materials can be used with assembly line air pipe feeding and other methods.
* It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
* PLC program touch screen control simple operation with feeding detection and automatic compression realizing unmanned operation.
* Unique automatic bundling device fast speed simple structure stable action low failure rate and easy to clean and maintain.
* Automatic fault diagnosis and automatic display improves detection efficiency freely sets bale length and accurately records the bale numbers.
* The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
* Three-phase voltage safety interlock simple and durable it can be equipped with air pipe and conveyor feeding material with higher efficiency.
Technical Parameters
| Model | JPW30QT | JPW40QT | JPW60QT |
| Compression force（Ton） | 30 | 40 | 60 |
| Bale size（W*H*L）mm | 500*500*(300-1000) | 720*720*(300-1500) | 750*850*(300-1600) |
| Feed opening size（L*W）mm | 950*450 | 1150*680 | 1500*700 |
| Bale line | 3 | 4 | 4 |
| Density（Kg/m³） | 250-300 | 350-450 | 400-500 |
| Capacity（Ton/Hr） | 1-1.5 | 1.5-2.5 | 3-4 |
| Power（Kw/Hp） | 11/15 | 15/20 | 22/30 |
| Machine size（L*W*H）mm | 5000*2750*1800 | 6100*3200*1950 | 6900*3300*2100 |
| Machine weight（Ton） | 4 | 6.5 | 8 |

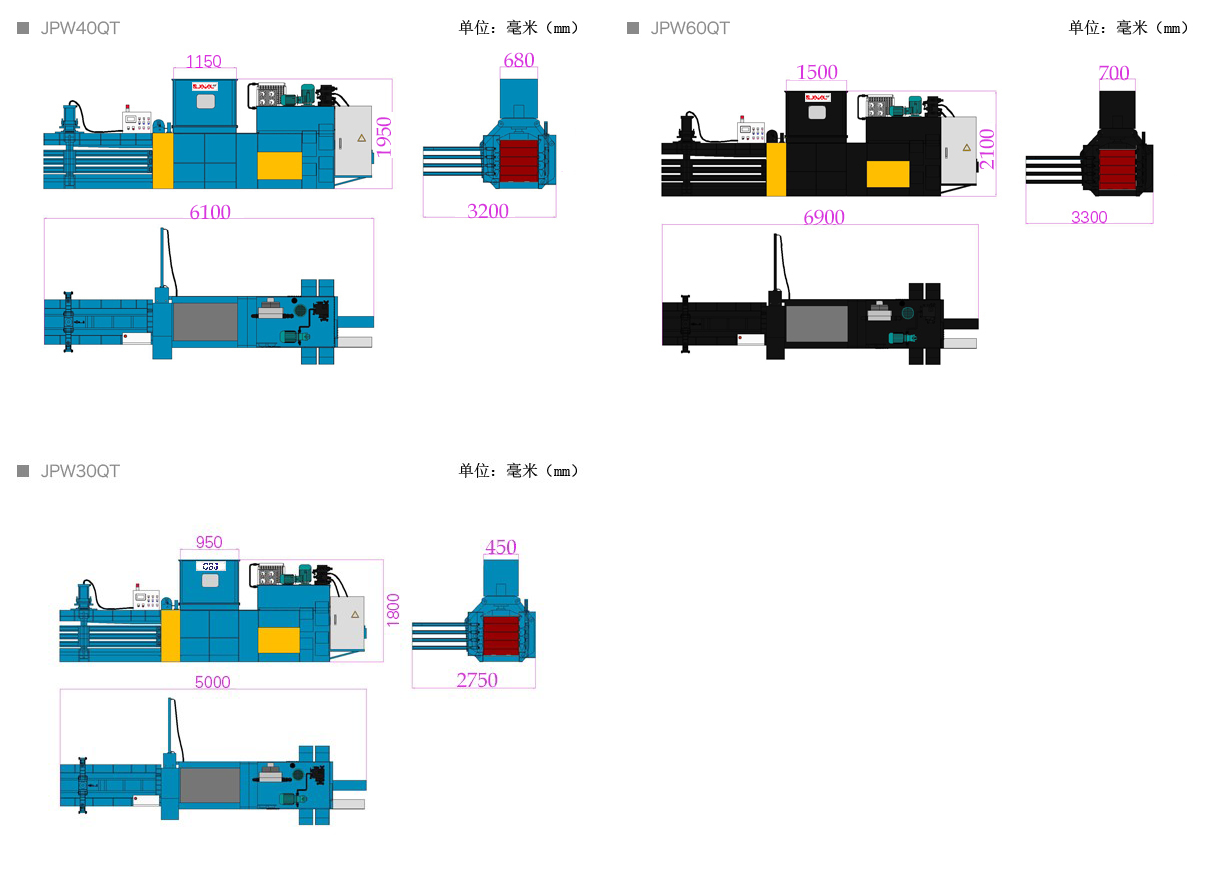

Dimensions
