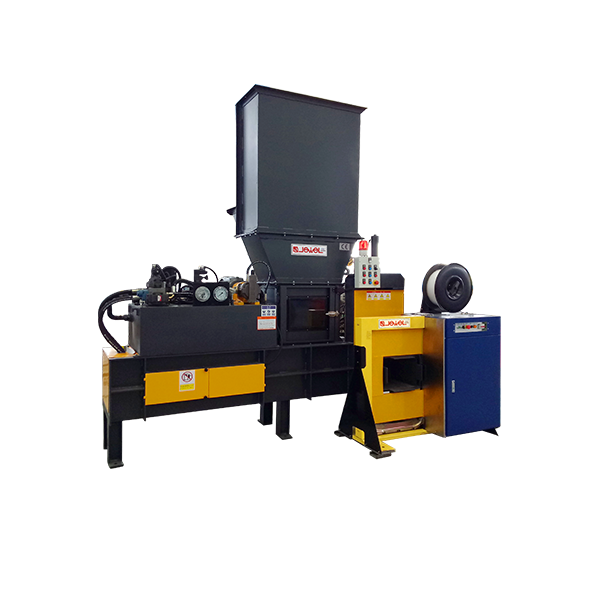

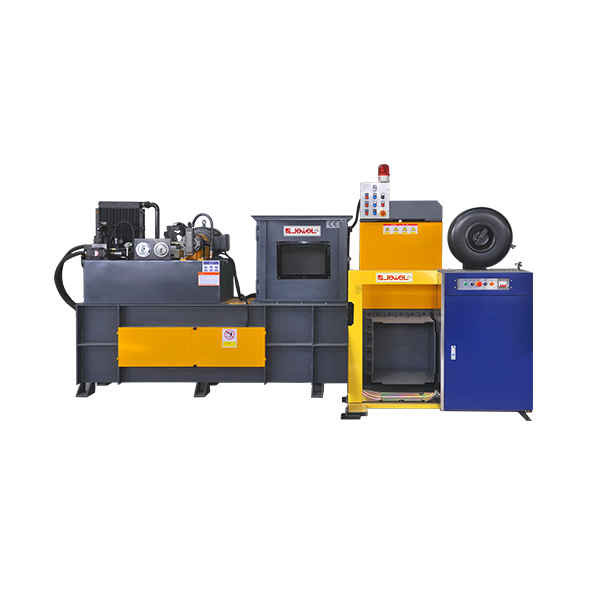

Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q
Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q

Small horizontal full automatic compression baler (PP strapp)PW20Q/30Q/40Q

Scope of Application:

*It is widely used in the compression, baling and recycling of materials such as printing, special paper, film, fiber and non-woven fabric scraps and so on.
Product video

Technical Characteristics

  • Automation

    Adopting an automatic weighing system
  • User-Friendly Design

    The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design
  • Quality Assurance

    All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

*Unmanned full automatic compression baling machine, compression and baling are automatically completed.
*PP strapping reduces the cost of auxiliary materials, facilitates storage and transportation, and reduces labor costs.
*Double ram compression with high density, small materials can be bagged.

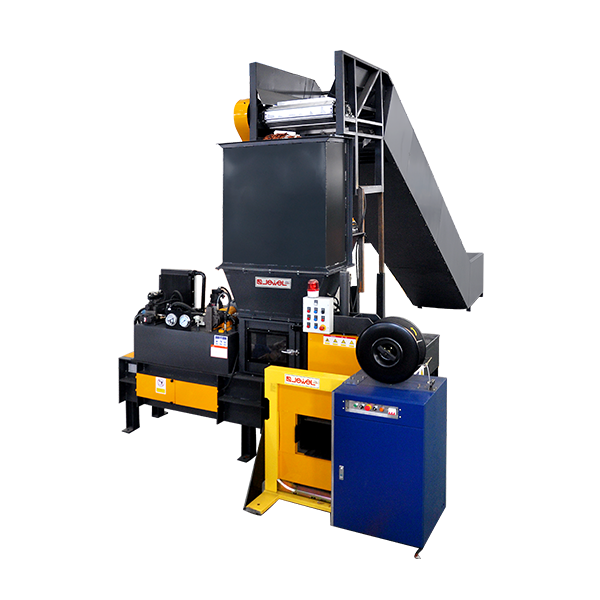

*The feed opening can be connected to the air pipe and separator for feeding or conveying, or it can be directly used with conveyor.
* Due to the special design of the machine, this model is only suitable for lightweight materials.
* PLC program, electric button control, simple operation, self-contained feeding detection, automatic compression, automatic PP strapping.
* Three-phase voltage, safety interlock, simple operation, it can be equipped with air pipes and conveyor feeding for higher efficiency.

Technical Parameters

ModelJPW20QJPW30QJPW40Q
Compression force(Ton)203040
Bale size(L*W*H)mm500*500*500700*700*700800*800*800
Feed opening size(L*W)mm700-460900*6601100*760
Bale lines2-43-53-5
Bale weight(Kg)30-7070-130100-150
Voltage(Customizable)(V/Hz)380V/50Hz380V/50Hz380V/50Hz
Power(Kw/Hp)7.5Kw/10Hp11Kw/15Hp15Kw/20Hp
Machine size(L*W*H)mm3400*3010*24004250*3120*26004750*3380*2900
Machine weight(Ton)2.83.33.7

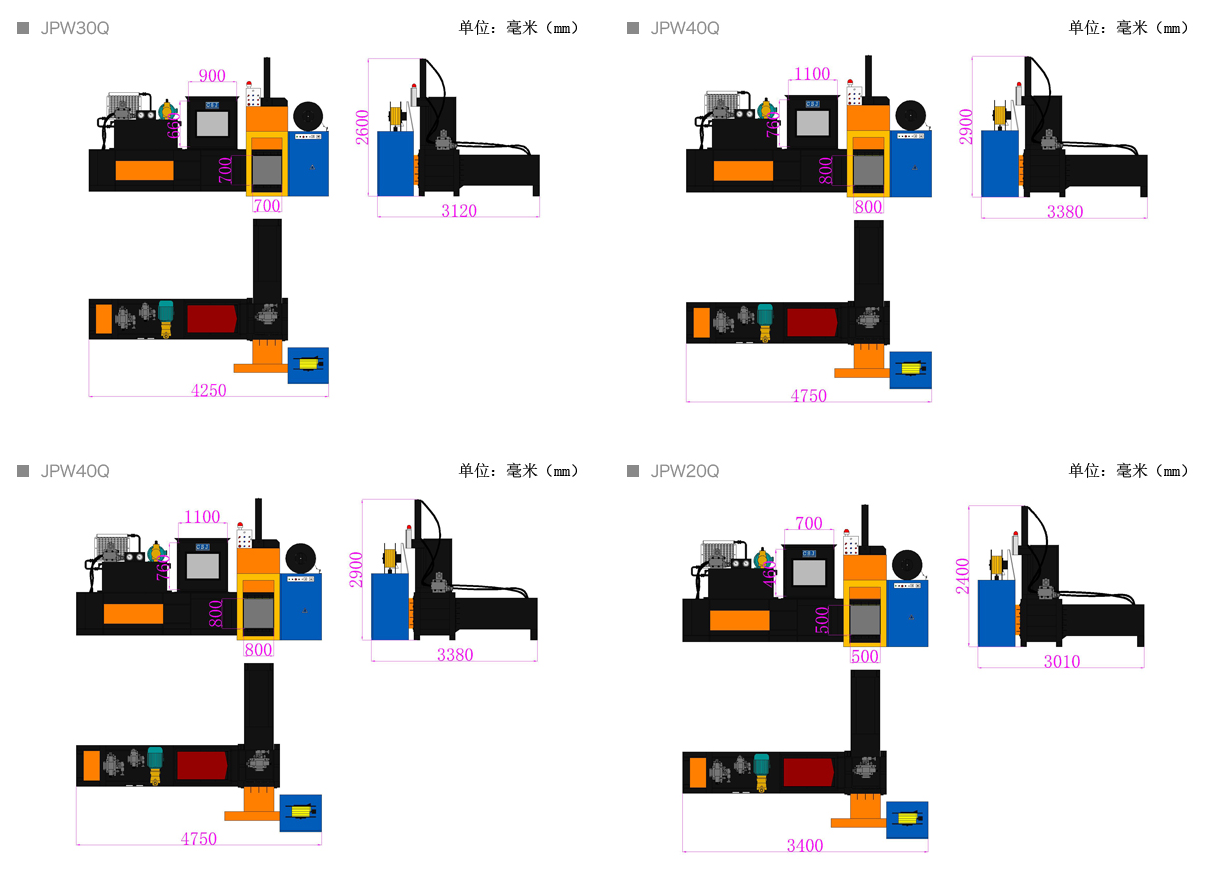

Dimensions
