Product video
PRODUCT DETAILS
* Adopting the left and right shrinking method through the oil cylinder automatic and manual tightening and relaxation easy to adjust.
* Left -right compressing and pushing bale out the length of bale can be adjusted pushing out bale continuously to improve work efficiency.
* PLC program control electric button control simple operation with feeding detection and automatic compression.
* The baling length can be set and there are bundling reminders and other devices.
* The size and voltage of the bale can be customized according to the reasonable requirements of the customer. The weight of the bale is different for different packaging materials.
* Three-phase voltage safety interlock simple operation can be equipped with air pipe and conveyor feeding material with higher efficiency.
Technical Parameters
| Model | JPW40E | JPW60E | JPW80E | JPW100E | JPW120E | JPW150E |
| Compression force（Ton） | 40 | 60 | 80 | 100 | 120 | 150 |
| Bale size（W*H*L）mm | 720*720*(500-1300) | 750*850*(500-1600) | 1100*800*(500-1800) | 1100*1100*(500-1800) | 1100*1200*(500-2000) | 1100*1200*(500-2100) |
| Feed opening size（L*W）mm | 1000*720 | 1200*750 | 1500*1100 | 1800*1100 | 2000*1100 | 2200*1100 |
| Bale line | 4 lines | 4 lines | 4 lines | 5 lines | 5 lines | 5 lines |
| Bale weight（Kg） | 200-400 | 300-500 | 400-600 | 700-1000 | 800-1050 | 900-1300 |
| Power（Kw/Hp） | 11Kw/15Hp | 15Kw/20Hp | 22Kw/30Hp | 30Kw/40Hp | 37Kw-/50Hp | 45Kw/61Hp |
| Capacity（Ton/Hr） | 1-2 | 2-3 | 4-5 | 5-7 | 6-8 | 6-8 |
| Out bale way | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale | Continuously push bale |
| Machine Size（L*W*H）mm | 4900*1750*1950 | 5850*1880*2100 | 6720*2100*2300 | 7750*2400*2400 | 8800*2400*2550 | 9300*2500*2600 |

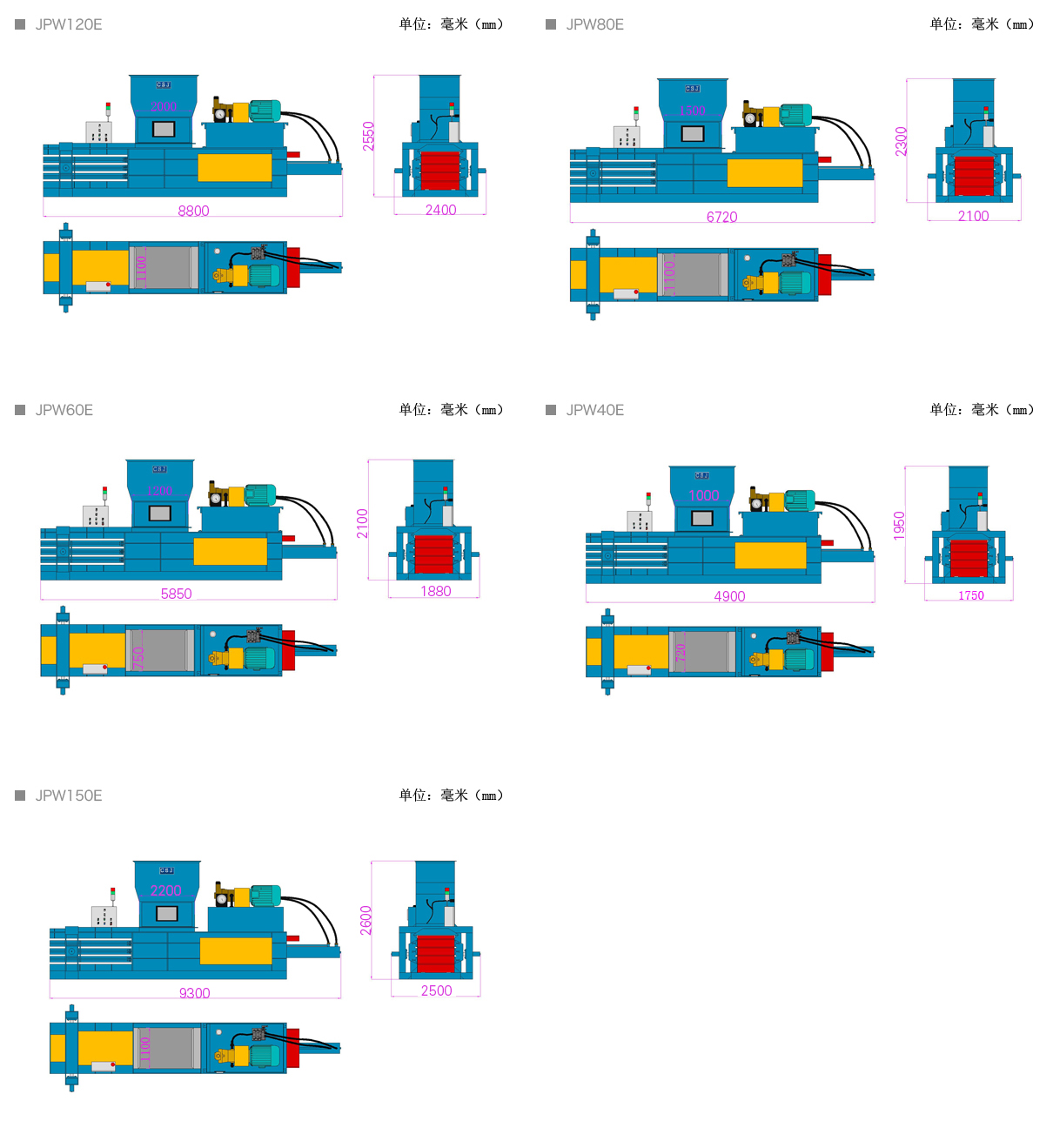

Dimensions
