Product video
PRODUCT DETAILS

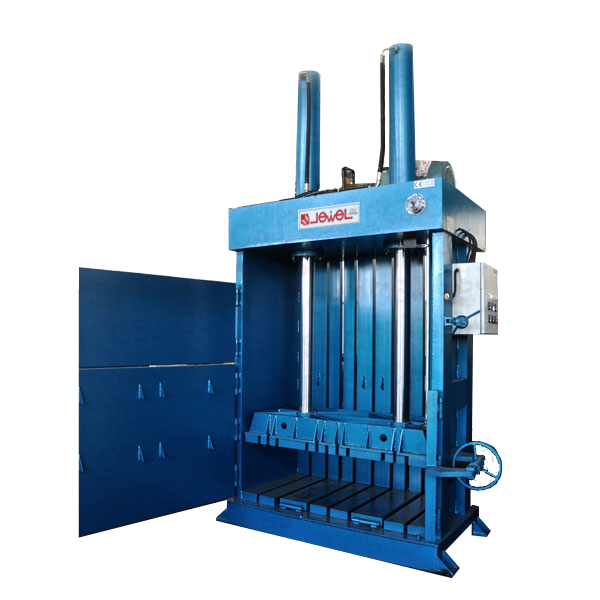

Heavy vertical model, welded structure, strong compression force, suitable for compression and packaging of hard plastics, such as car bumpers, electrical casings, tires, and other materials.
* This machine is designed specifically for compressing and packaging large materials, with hydraulic door opening.
* Dual cylinder compression has two operating modes: manual valve and electric button.
* Active and fixed dual rebound devices.
Technical Parameters
| Model | JP-OT100 | JP-OT120 | JP-OT150 | JP-OT180 |
| Compression force（Ton） | 100 | 120 | 150 | 180 |
| Bale size（L*W*H）mm | 1400*700*（700-1100） | 11400*700*（700-1100） | 1800*1000*(700-1250) | 2000*1200*（700-1250） |
| Feed opening size（L*H）mm | 1400*600 | 1400*600 | 1800*750 | 2000*750 |
| Capacity（Bales/Hr） | 5-6 | 5-6 | 4-5 | 4-5 |
| Chamber size（L*W*H）mm | 1400*700*1700 | 1400*700*1700 | 1800*1000*2100 | 2000*1200*2100 |
| Voltage (Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 15Kw/20Hp | 15Kw/20Hp | 22Kw/30Hp | 30Kw/40Hp |
| Package weight（Kg） | 400-600 | 500-700 | 1000-1500 | 1300-2000 |
| Machine weight（Kg） | 3500 | 4000 | 7000 | 9000 |

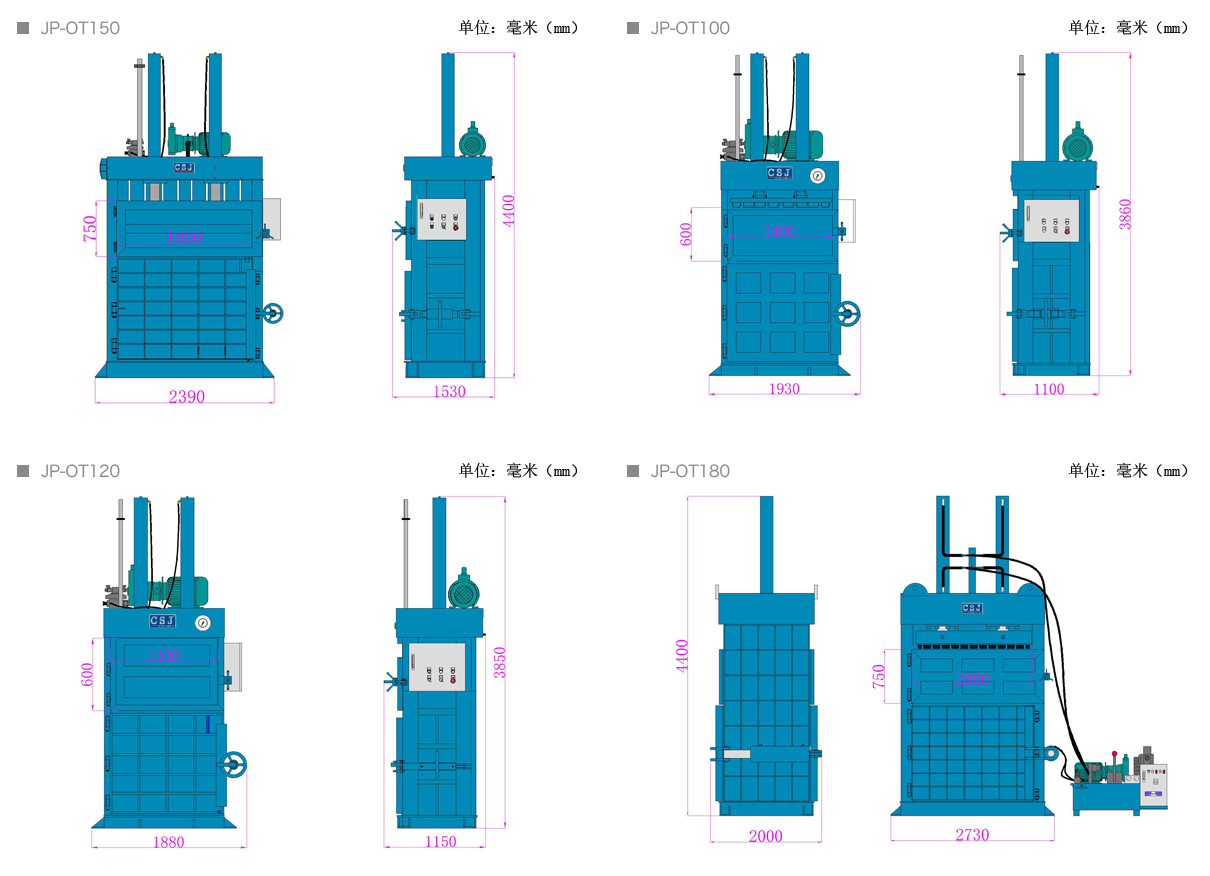

Dimensions
