Product video
PRODUCT DETAILS

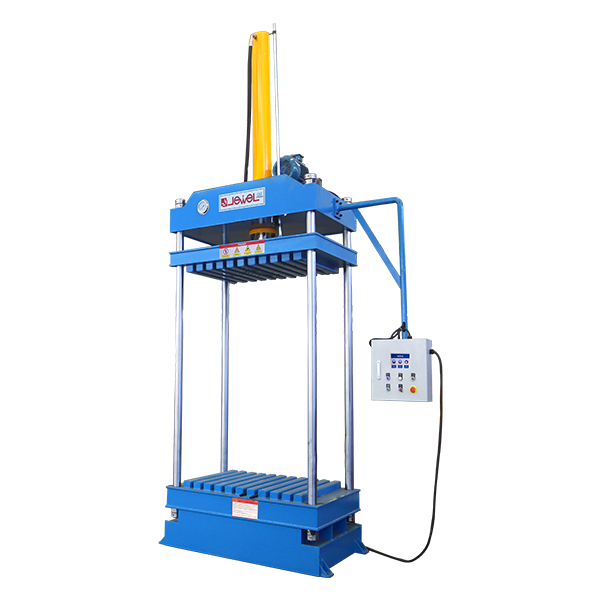

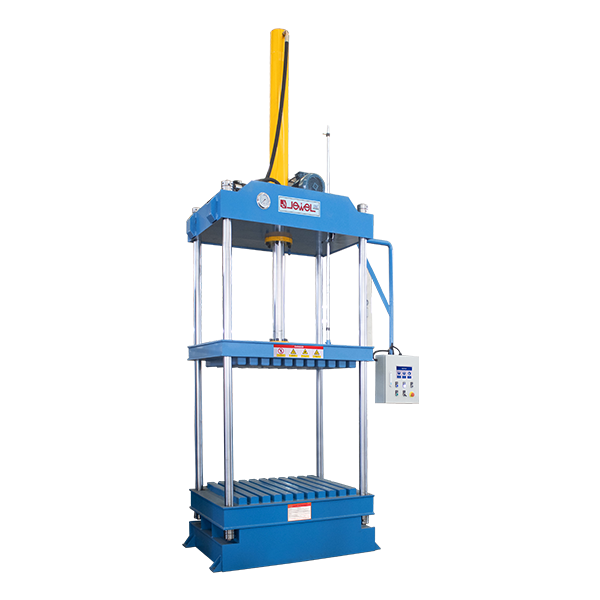

* This baler adopts hydraulic system, cylinder compression, four-column support, electric button control, convenient and simple operation.
* It is used to compress and package large and light products. It is suitable for compressing and packaging loose objects such as clothing, bedding and textile cotton, down quilts, space cotton, quilts, cloth, woven bags, etc., to keep the compression flat and beautiful, and reduce the packaging volume and storage and transportation costs.
* The model is designed for easy operation and can be bundled with "一" or "#"type.* The special hydraulic system ensures the stability and durability of the machine.
.
Technical Parameters
| Model | JP-20T | JP-40T | JP-60T |
| Compression force（Ton） | 20 | 40 | 60 |
| Compression time（s） | 25 | 30 | 36 |
| Bale platform size L * W （mm） | 600*400 | 1000*800 | 1200*1000 |
| Work stroke（mm） | 900 | 1100 | 1300 |
| Capacity（bales/hour） | 6-8 | 6-8 | 6-8 |
| Voltage(Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 3Kw/4Hp | 5.5Kw/7.5Hp | 7.5Kw/10Hz |
| Machine size（L*W*H）mm | 1800*1000*2770 | 1800*1000*2670 | 1800*1000*2800 |
| Machine weight（Kg） | 1600 | 2000 | 2800 |

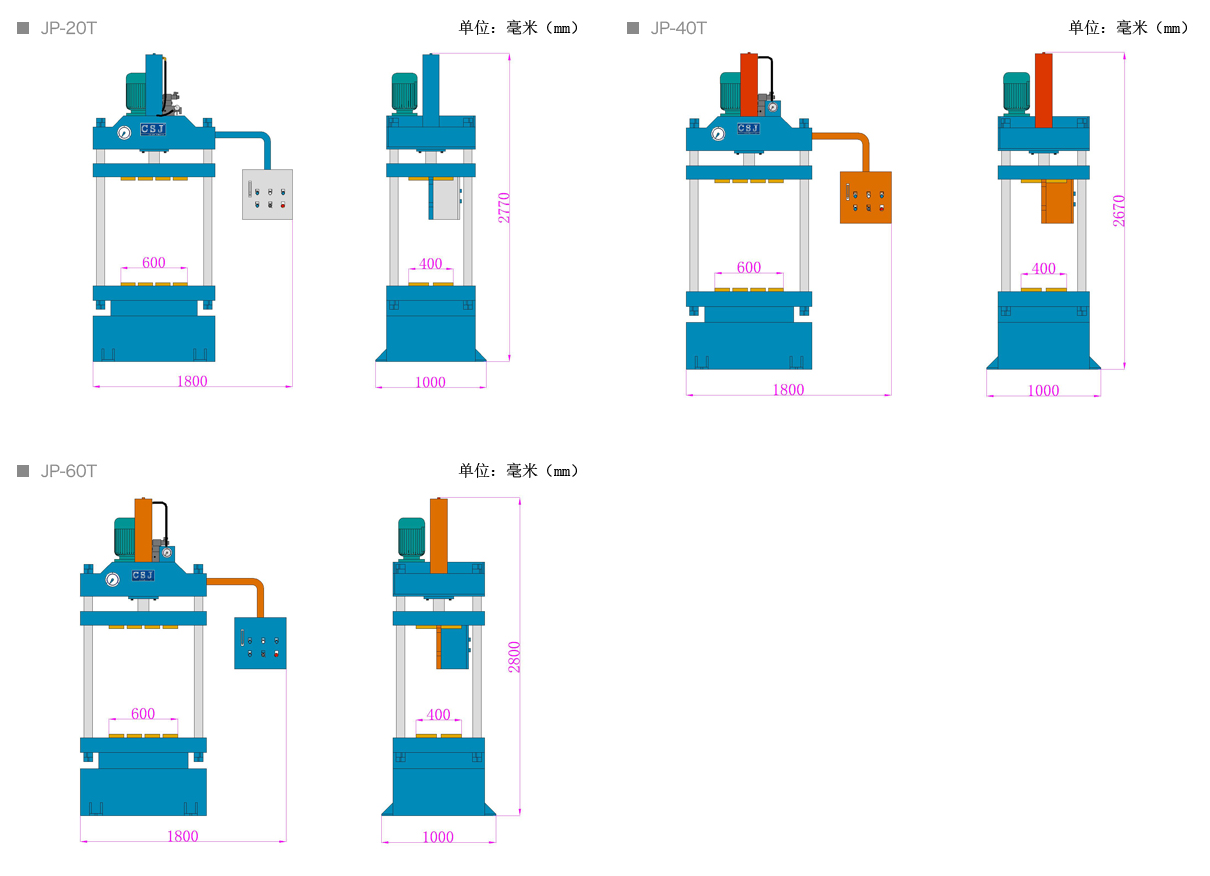

Dimensions
