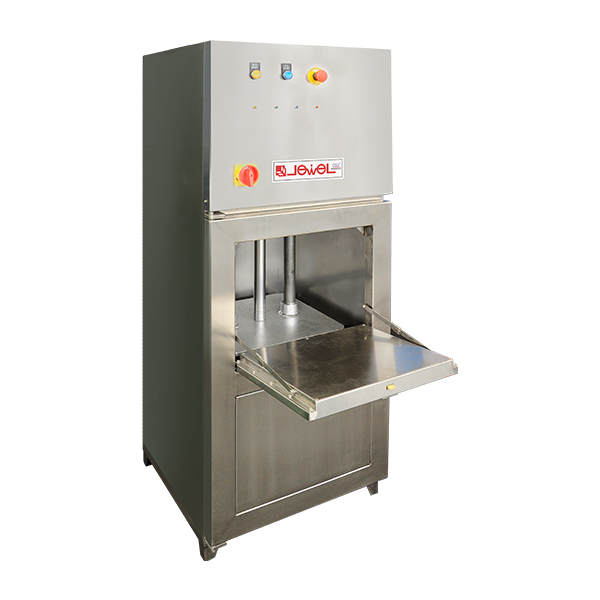

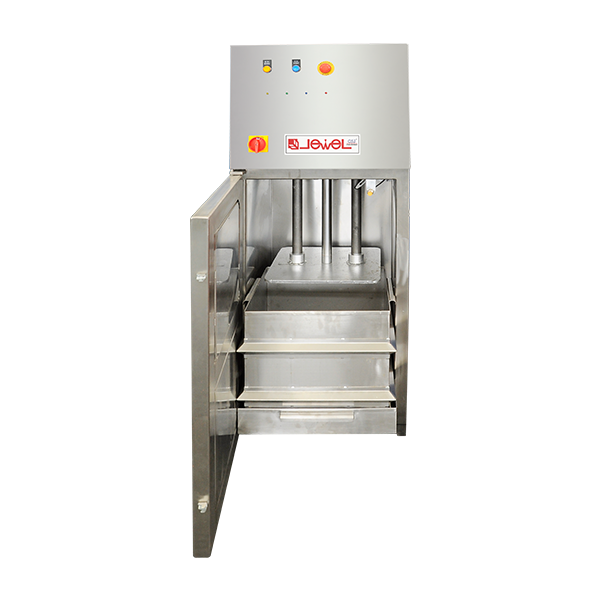

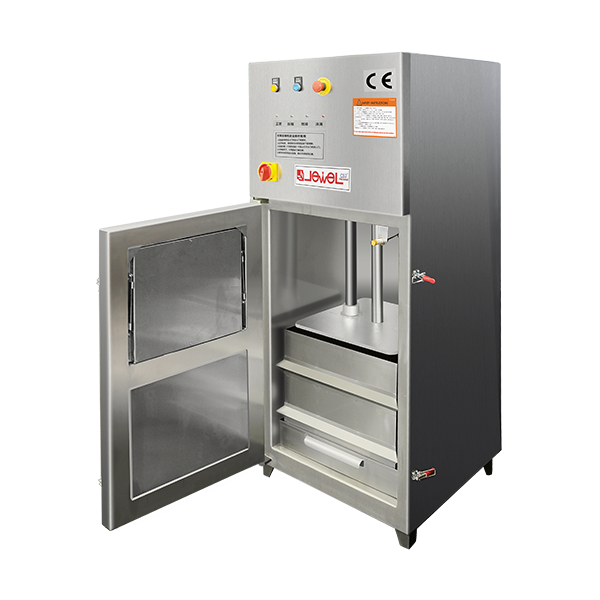

Vertical City Living Baling Machine JP-T1

Vertical City Living Baling Machine JP-T1

Scope of Application：

Applicable to public places such as offshore platforms, hospitals, schools, hotels, restaurants, ships, trains, etc.

Product video

Technical Characteristics

Automation

Adopting an automatic weighing system
User-Friendly Design

The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design
Quality Assurance

All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter

PRODUCT DETAILS

* Good sealing prevents leakage of peculiar smell.
* Ultraviolet and ozone generator can be added, with disinfection and sterilization function.
* Adopt advanced hydraulic system, stable performance, simple operation, safe and reliable
* Use ordinary garbage bags and garbage bins.

Technical Parameters

Model	JP-T1
Compression force（Ton）	1
Bale size（LWH）mm	460450460
Feed opening size（L*H）mm	450*380
Chamber size（LWH）mm	4604501000
Capacity（T/Day）	5
Voltage(Customizable)（V/Hz）	380V/50Hz
Power（Kw/Hp）	1Kw/1.5Hp
Machine size（LWH）mm	5555201800
Machine weight（Kg）	250
Machine appearance	Stainless steel

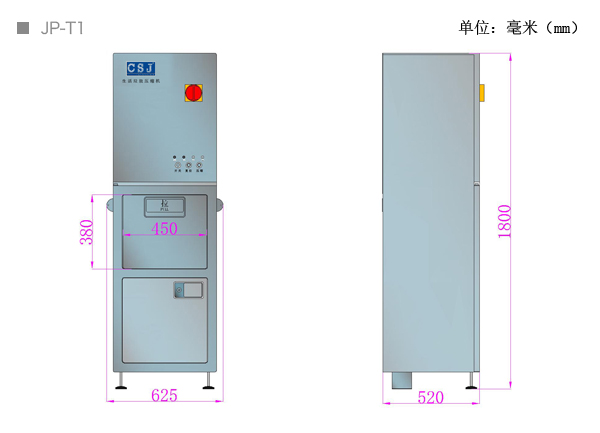

Dimensions

Product Center

Home > Hydraulic Baler > Vertical Baler

Vertical City Living Baling Machine JP-T1

Scope of Application：

Technical Characteristics

Automation

Adopting an automatic weighing system

User-Friendly Design

The loading port is set at a distance of 70CM above the ground, achieving easy loading and user-friendly design

Quality Assurance

All electrical and pneumatic components are made of German and Japanese brands

Technical Parameter
