Product video
PRODUCT DETAILS
* Used for the layer board shaping of chemical pharmacy ect powder type particles.
* Hydraulic shaping machine structure open door from front side easy to operate.
* Side door and back door can be moved make the side and upside of product more beautiful.
* Centralized control by electric buttons choose any shaping size more standard and reasonable.
* Product after shaped occupies less space easy to stack storage and transport.
Technical Parameters
| Model | JPY2-1111 | JPY2-1012 |
| Main cylinder pressuer（T） | 40 | 40 |
| Side cylinder pressuer（T） | 10T*2 | 10T*2 |
| Back cylinder pressuer（T） | 10T*2 | 10T*2 |
| Shaping size（mm） | 1100*1100 | 1000*1200 |
| Door open method | Open door from front side | Open door from front side |
| Chamber size（mm） | 1300*1300*1500 | 1200*1400*1500 |
| Voltage（V/Hz） | 380V / 50Hz | 380V / 50Hz |
| Power（Kw/Hp） | 7.5KW/10Hp | 7.5KW/10Hp |
| Machine Size（L*W*H） | 2100*2100*3200 | 2300*1900*3610 |
| Machine weight（Kg） | 1900 | 1700 |

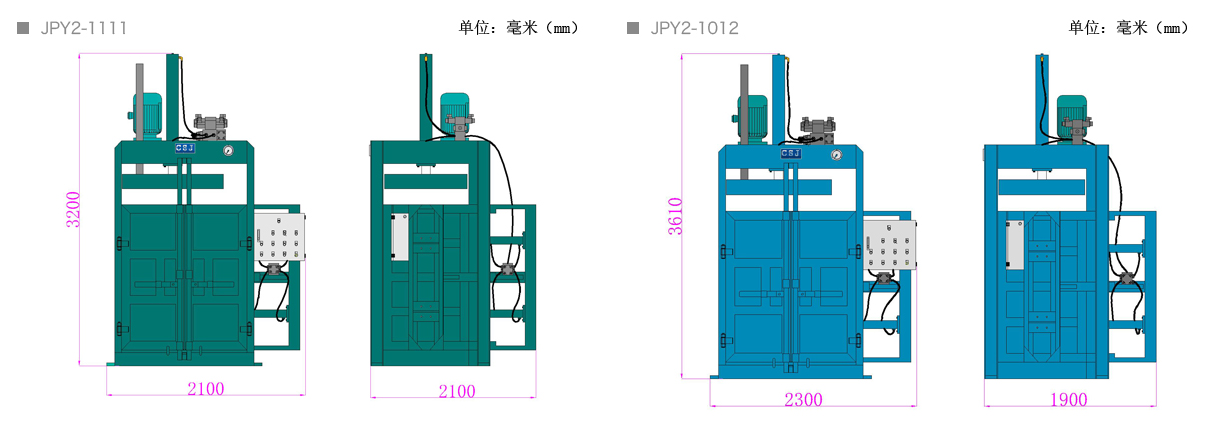

Dimensions
