Product video
PRODUCT DETAILS

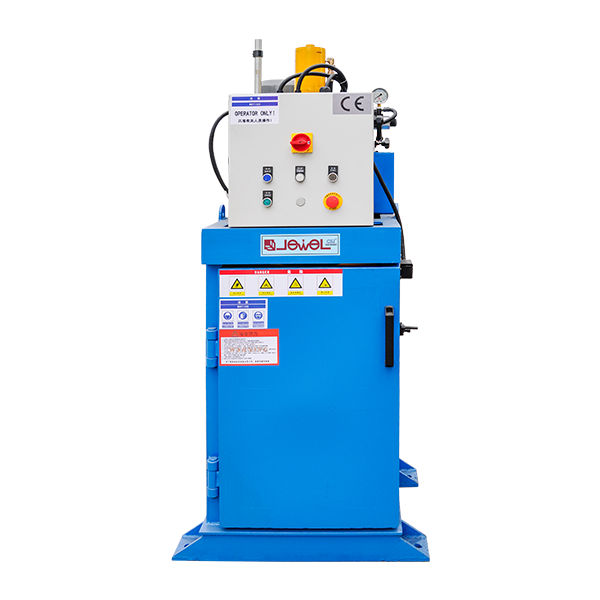

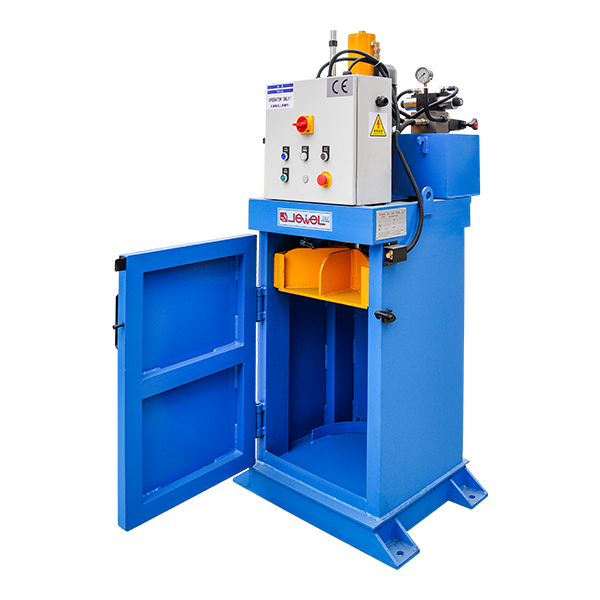

* Specially designed for the compression of metal drum materials like oil drums, paint drums, etc;
* Hydraulic driven with independent power system and electrical system;
* Air and liquid will be automatically exhausted during the compressing process;
* Equipped with safety protection device;
* With integrated liquid tray to prevent liquid contamination;
* Suitable for barrels from 50L to 200L, no need strapping, widely used in industries which generate a large number of drums.
Technical Parameters
| Model | JPY-T30 |
| Hydraulic power（Ton） | 30 |
| Compress range（L*W*H）mm | 760*760*(150-900) |
| Chamber size（L*W*H）mm | 760*760*1000 |
| Capacity（Bales/Hr） | 40-50 |
| Voltage(Customizable)（V/Hz） | 380V/50Hp |
| Power（Kw/Hp） | 5.5Kw/7.5Hp |
| Machine size（L*W*H）mm | 1100*1000*2590 |
| Machine weight（Kg） | 800 |
Dimensions
