PRODUCT DETAILS

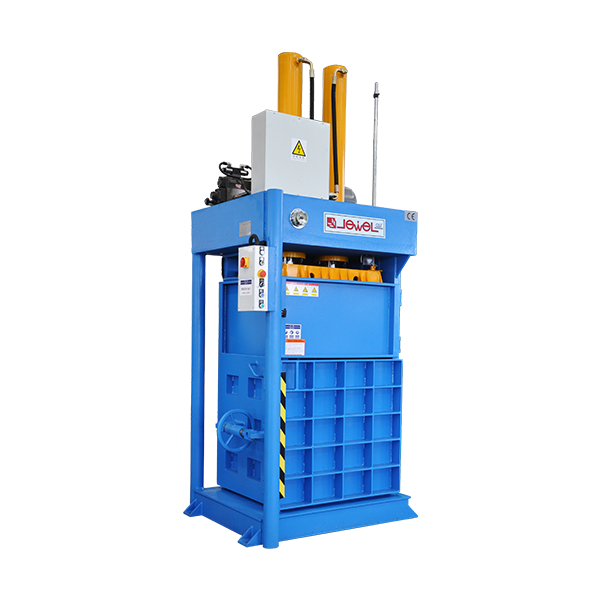

* This machine uses double cylinder balanced compression, and special hydraulic system keeps power more stable.
* High load structure, automatic bale-turning device, safe and reliable.
* The door is opened at a right angle and can baled with "#"
* The compression chamber is equipped with a material anti-rebound device.
* Double-cylinder with strong compression force, and balanced pressure plate can solve the problem of bias caused by uneven feeding.
Technical Parameters
| Model | JPA080T80 | JPA080T100 | JPA080T120 |
| Compression force（Ton） | 80 | 100 | 120 |
| Bale size（L*W*H）mm | 1000*800*（500-1000） | 1000*800*(500-1000) | 1000*800*(500-1000) |
| Feed opening size（L*H）mm | 1000*500 | 1000*500 | 1000*500 |
| Capacity（Bales/Hr） | 3-6 | 3-6 | 3-6 |
| Chamber siz（L*W*H）mm | 1000*800*1500 | 1000*800*1500 | 1000*800*1500 |
| Voltage(Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 11Kw/15Hp | 15Kw/20Hp | 18.5Kw/25Hp |
| Machine size（L*W*H）mm | 1700*1450*3500 | 1700*1450*3500 | 1700*1450*3500 |
| Machine weight（Kg） | 2800 | 3200 | 3400 |

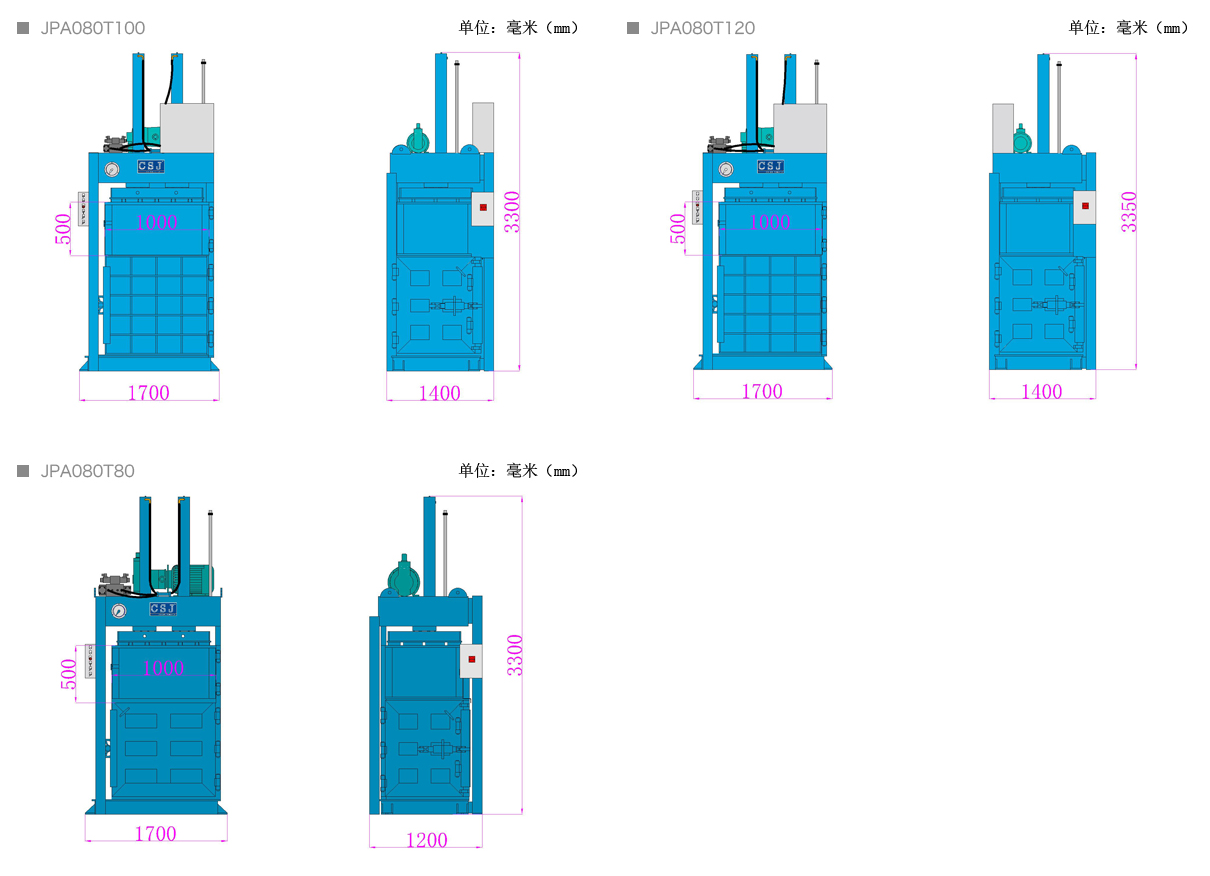

Dimensions
