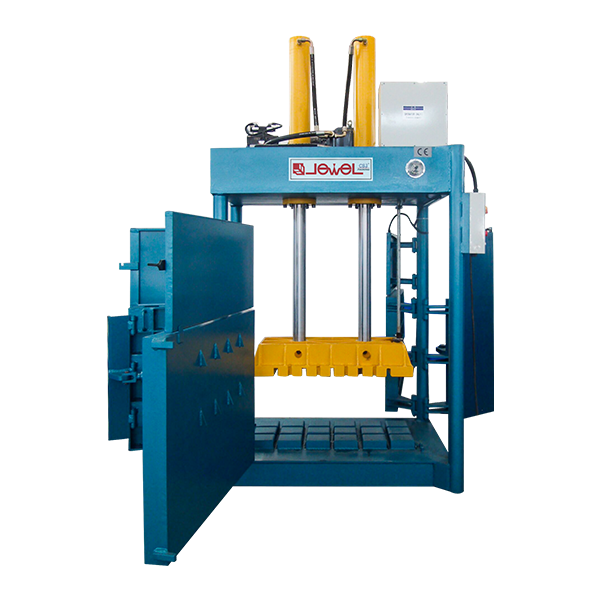

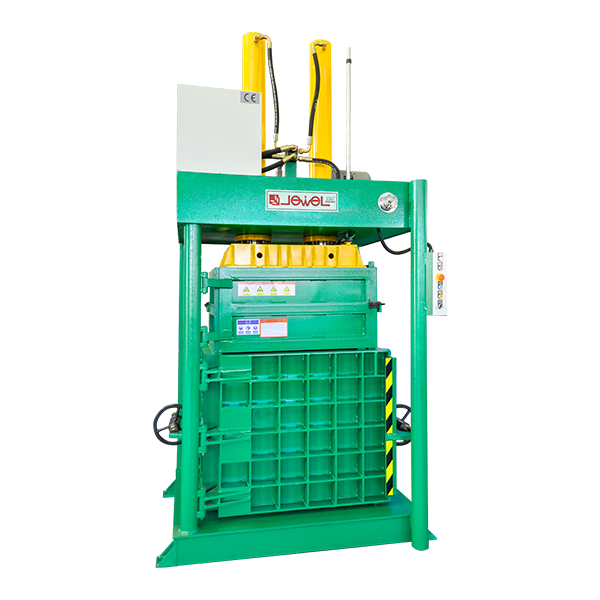

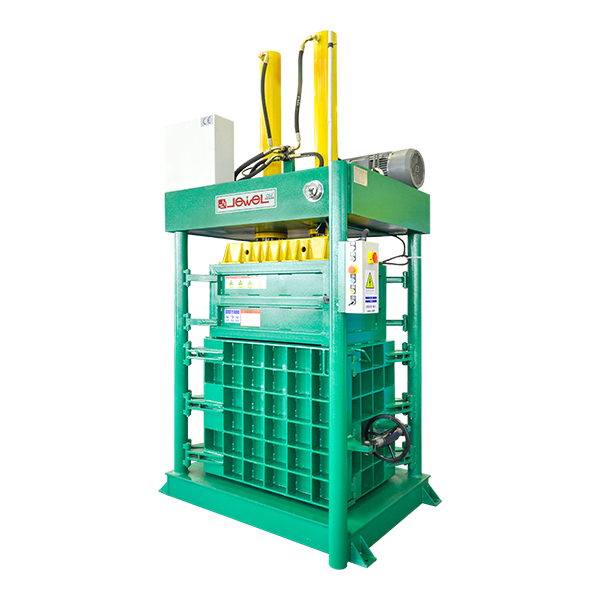

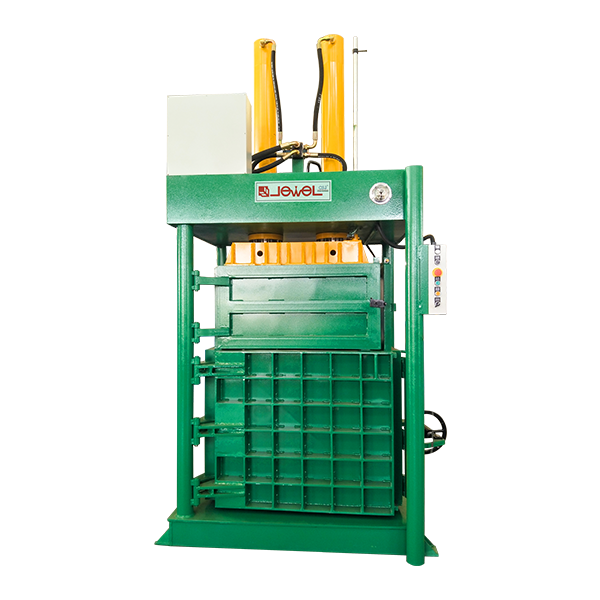

PRODUCT DETAILS
* The machine uses double cylinders for balanced compression, and special hydraulic system keeps power more stable.
* High load structure, safe and reliable.
* Adopting four-side door opening type, the bales are externally packed before bundling, and the bales can also be bundled in two directions with "#".
* The size of the block can be designed according tooading and cabinet loading.
* European and American standard locking device to ensure the safety of operators.
* The feeding chamber adopts a device to prevent material rebound, which greatly saves feeding time.
Technical Parameters
| Model | JPA070T80 | JPA070T120 | JPA1010T160 |
| Compression force（Ton） | 80 | 120 | 160 |
| Bale size（L*W*H）mm | 1000*700*(500-900) | 1000*700*(500-900) | 1100*1000*(400-1200) |
| Feed opening size（L*H）mm | 1000*500 | 1000*500 | 1100*800 |
| Capacity（Bales/Hr） | 4-6 | 4-6 | 4-6 |
| Chamber size（L*W*H）mm | 1000*700*1500 | 1000*700*1500 | 1100*1000*2000 |
| Voltage (Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 11Kw/15Hp | 15Kw/20Hp | 30Kw/40Hp |
| Machine size（L*W*H）mm | 1800*1480*3500 | 2100*1700*3500 | 2100*1800*4600 |
| Machine weight（Kg） | 2600 | 3200 | 6000 |

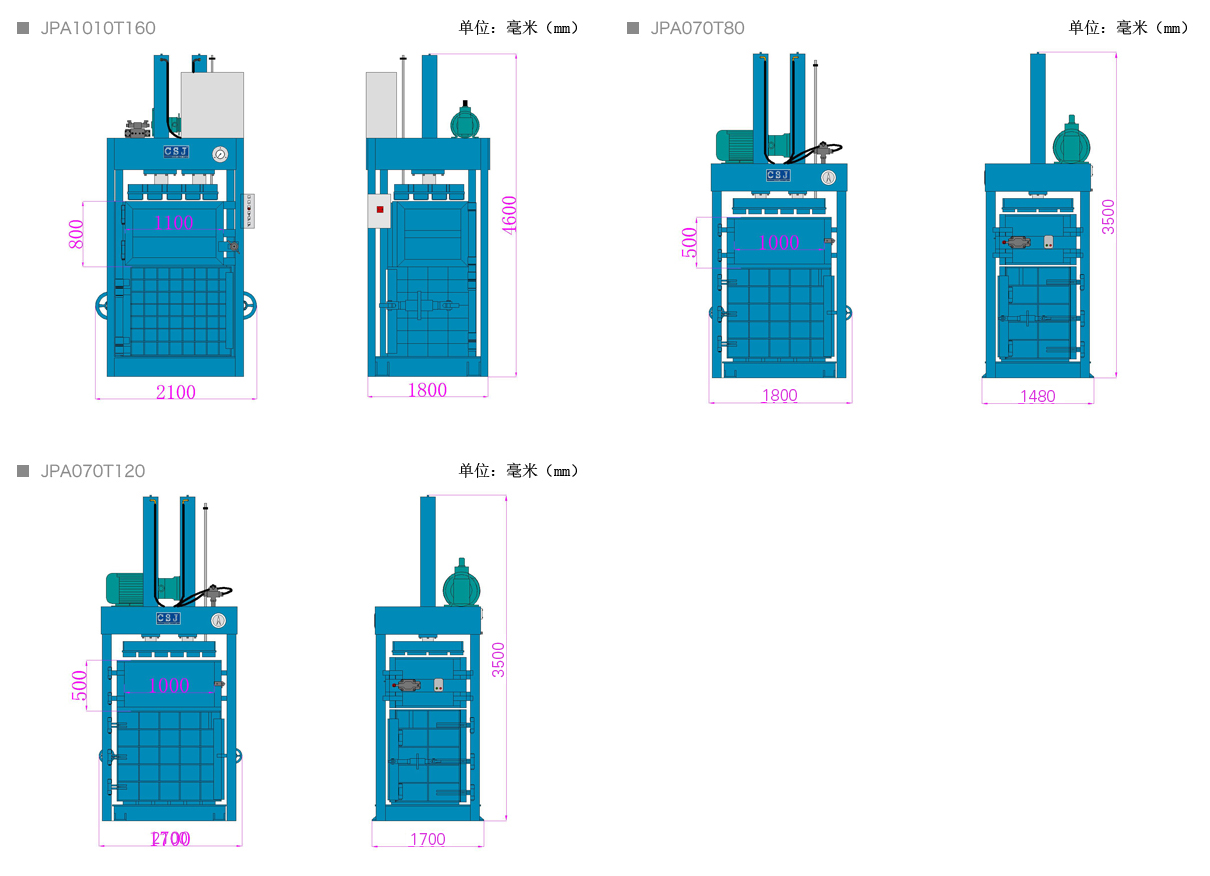

Dimensions
