Product video

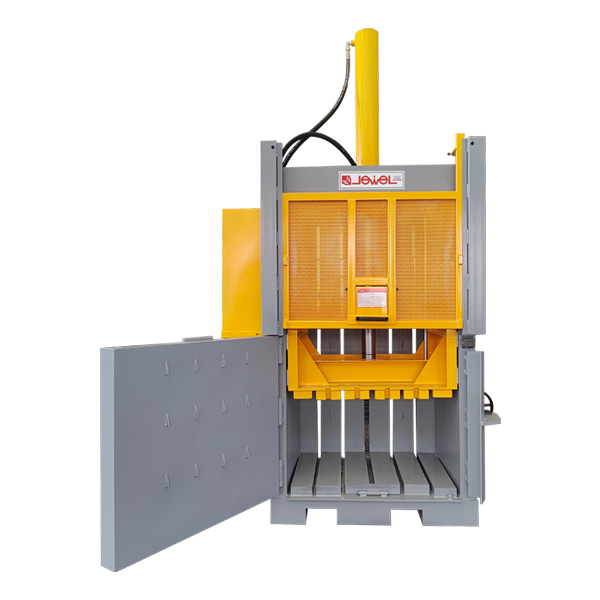

PRODUCT DETAILS
* U-shaped balance device avoids accidents caused by uneven material placement.

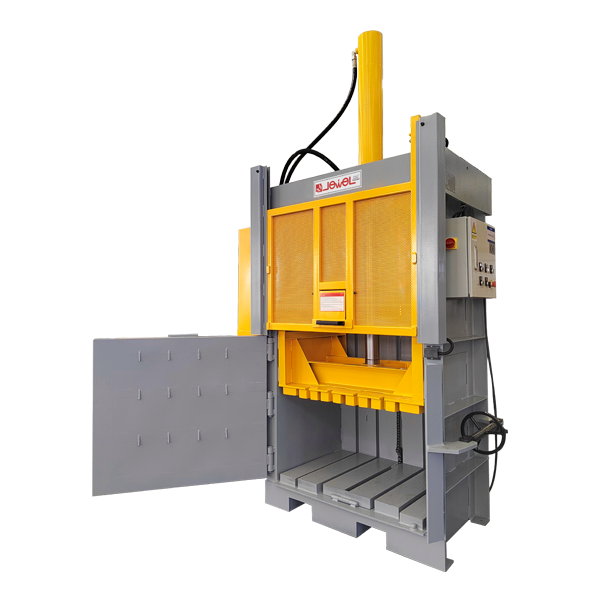

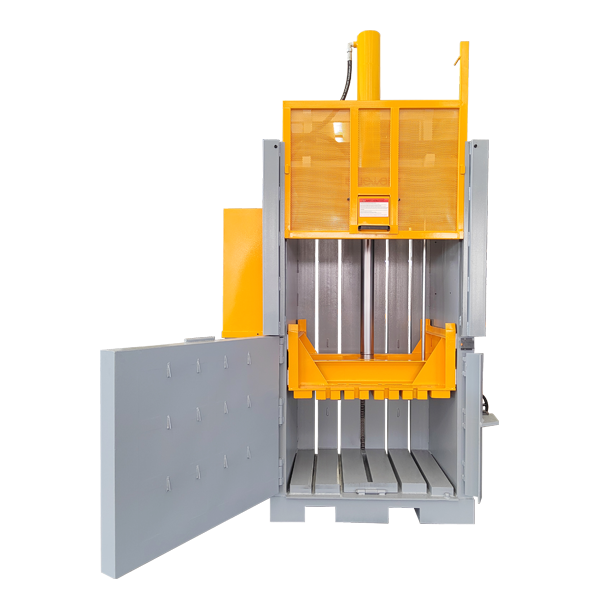

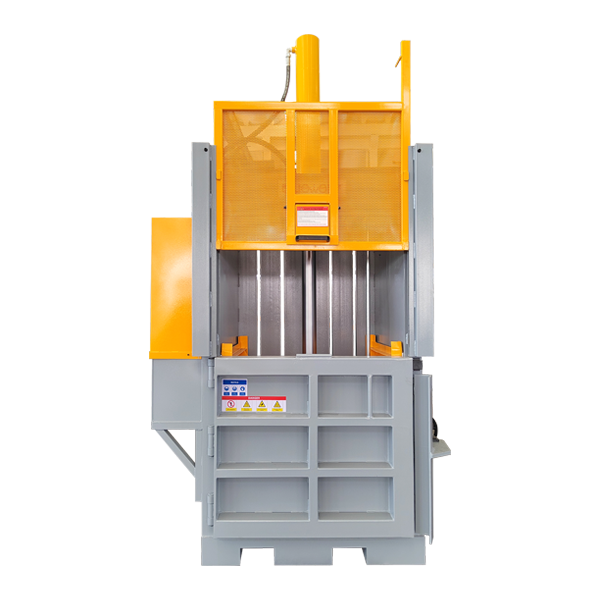

* The feed opening adopts up and down movable door opening, which reduces the door opening space and facilitates feeding.
* Safety interlock, with turn-over system.
* The feeding chamber adopts a device to prevent material rebound, which greatly saves feeding time.
* High-quality spare parts ensure the service life of the equipment.
* Up and down movable door opening saves the space of the left and right door opening arc, and the appearance is beautiful, it is a popular model for more exports.
Technical Parameters
| Model | JPA1070T30M | JPA1075T40M | JPA5076T50M |
| Compression force（Ton） | 30 | 40 | 50 |
| Bale size（L*W*H）mm | 1100*700*(650-900) | 1100*750*(700-1000) | 1500*760*(700-1000) |
| Feed opening size（L*H）mm | 1050*500 | 1050*500 | 1450*600 |
| Capacity（Bales/Hr） | 3-6 | 3-5 | 3-5 |
| Bale weight（Kg） | 150-250 | 200-350 | 350-500 |
| Voltage (customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 5.5Kw/7.5Hp | 5.5Kw/7.5Hp | 7.5Kw/10Hp |
| Machine size（L*W*H）mm | 1580*1100*3280 | 1580*1150*3450 | 2000*1180*3650 |
| Machine weight（Kg） | 1500 | 2150 | 2500 |

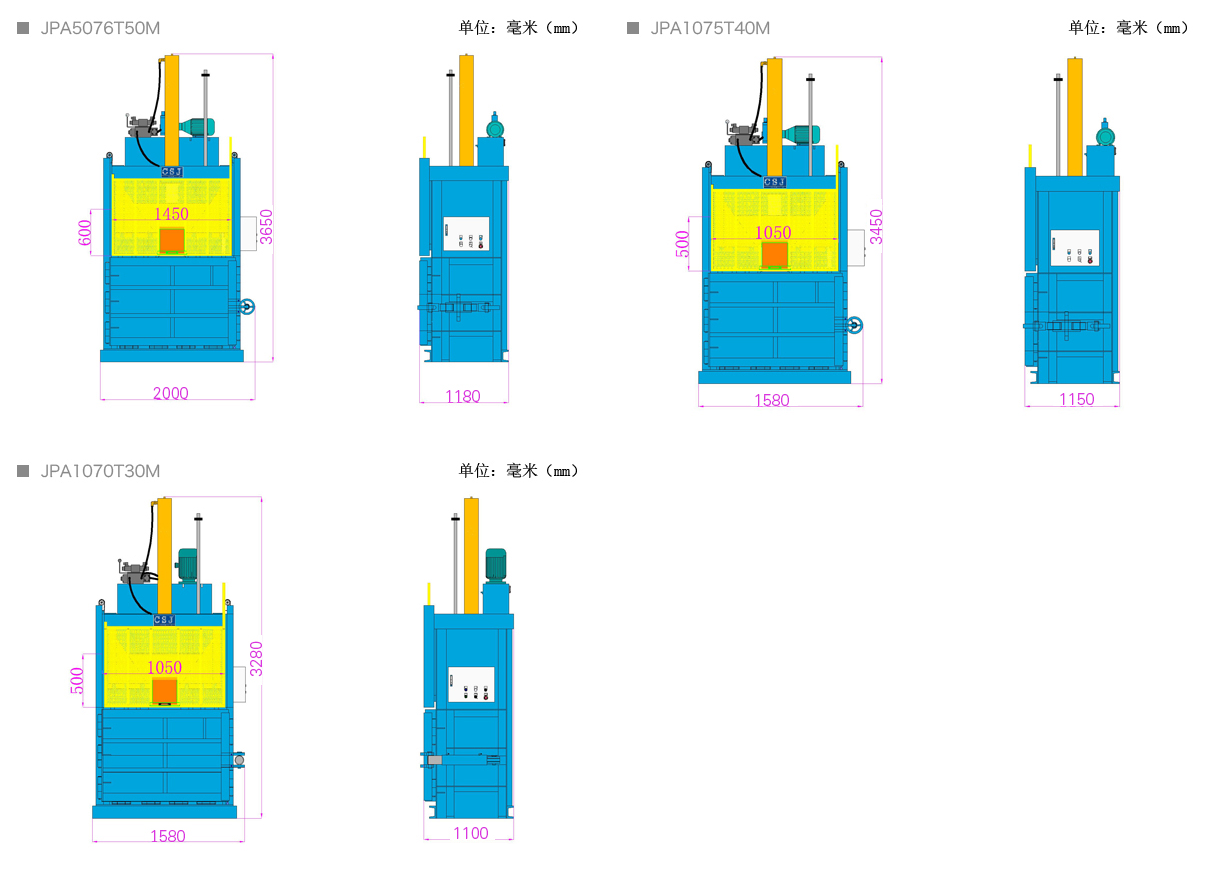

Dimensions
