PRODUCT DETAILS
* This machine adopts hydraulic transmission and has an independent pressure plate balance device.
* It adopts manual valve working mode, which is convenient and simple to operate.
* Independent feed opening and automatic bale-out device, safe and reliable.
* This machine is of high quality and low price, economical machine.
Technical Parameters
| Model | JP-C15A | JP-C20A | JP-C30A | JP-C40A | JP-C50A |
| Compression force（Ton） | 15 | 20 | 30 | 40 | 50 |
| Bale size（L*W*H）mm | 800*600*(400-800) | 1000*700*(400-800) | 1100*700*(450-900) | 1100*750*(450-900) | 1100*750*(450-900) |
| Feed opening size（L*H）mm | 800*450 | 1000*500 | 1100*500 | 1100*500 | 1100*500 |
| Capacity（Bales/Hr） | 4-7 | 4-7 | 4-7 | 4-7 | 4-6 |
| Bale weight（Kg） | 50-120 | 90-160 | 120-200 | 200-250 | 250-350 |
| Voltage(Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 3Kw/4Hp | 4Kw/5.5Hp | 5.5Kw/7.5Hp | 5.5Kw/7.5Hp | 7.5Kw/10Hp |
| Machine size（L*W*H）mm | 1070*850*2850 | 1400*950*3000 | 1550*950*3050 | 1550*1100*3250 | 1550*1100*3250 |
| Machine weight（Kg） | 800 | 850 | 1340 | 1500 | 1700 |

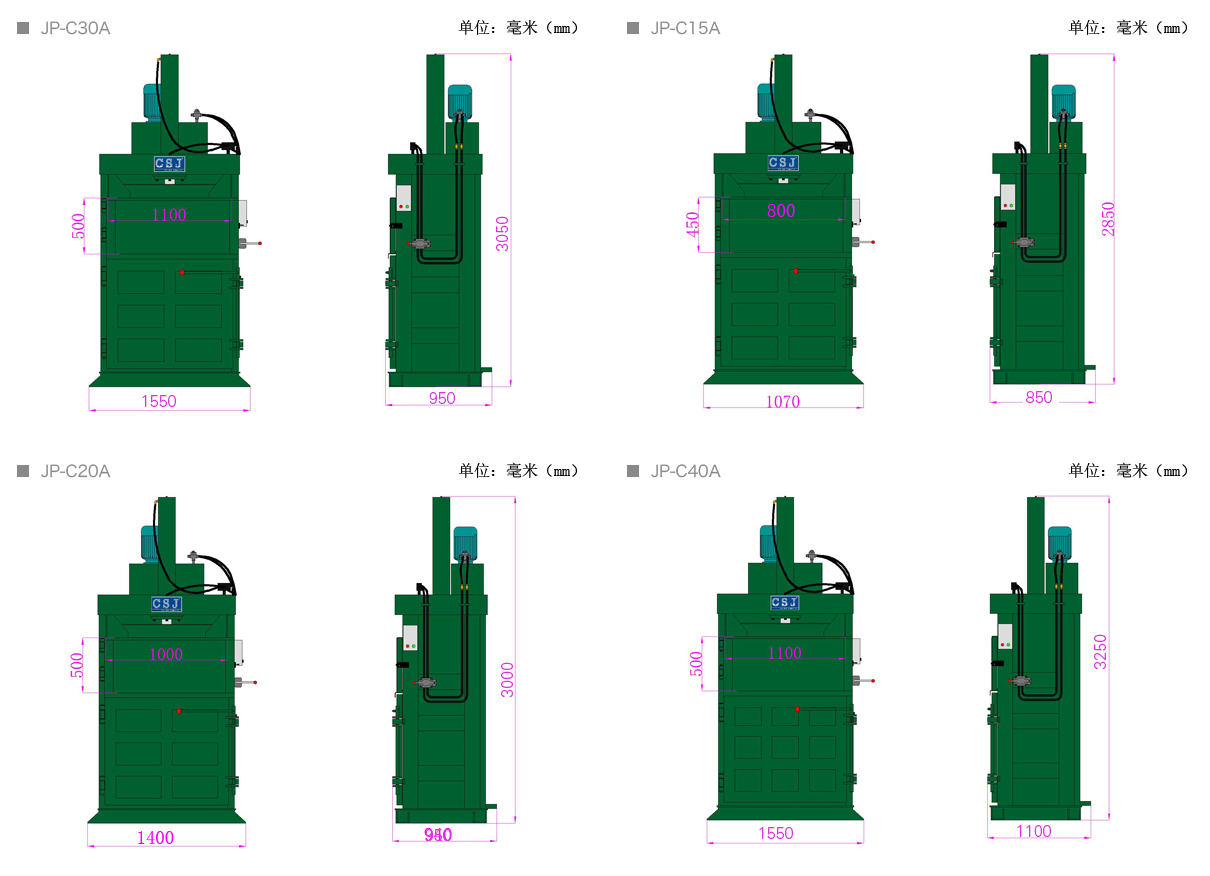

Dimensions
