Product video
PRODUCT DETAILS
* Adopt integrated design, button centralized control, it can realize a variety of working methods.
* Independent feed opening and automatic bag-out device, convenient and simple operation, interlocking device installed at the feed opening, safe and reliable.
* Adopt British imported seals to improve the service life of the oil cylinder.
* The oil pipe joints are connected in a tapered form without gaskets to avoid oil leakage.
Technical Parameters
| Model | JP8060T15 | JP8060T20 | JP8060T30 |
| Compression force（Ton） | 15 | 20 | 30 |
| Bale size（L*W*H）mm | 800*600*(400-800) | 800*600*(400-800) | 800*600*(400-800) |
| Feed opening（L*H）mm | 800*450 | 800*450 | 800*450 |
| Capacity（Bales/Hr） | 4-7 | 4-7 | 4-7 |
| Bale weight（Kg） | 50-120 | 80-120 | 100-150 |
| Voltage(Customizable)（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 3Kw/4Hp | 4Kw/5.5Hp | 5.5Kw/7.5Hp |
| Machine size（L*W*H）mm | 1280*900*2870 | 1280*900*3020 | 1280*900*3050 |
| Machine weight（Kg） | 850 | 1050 | 1200 |

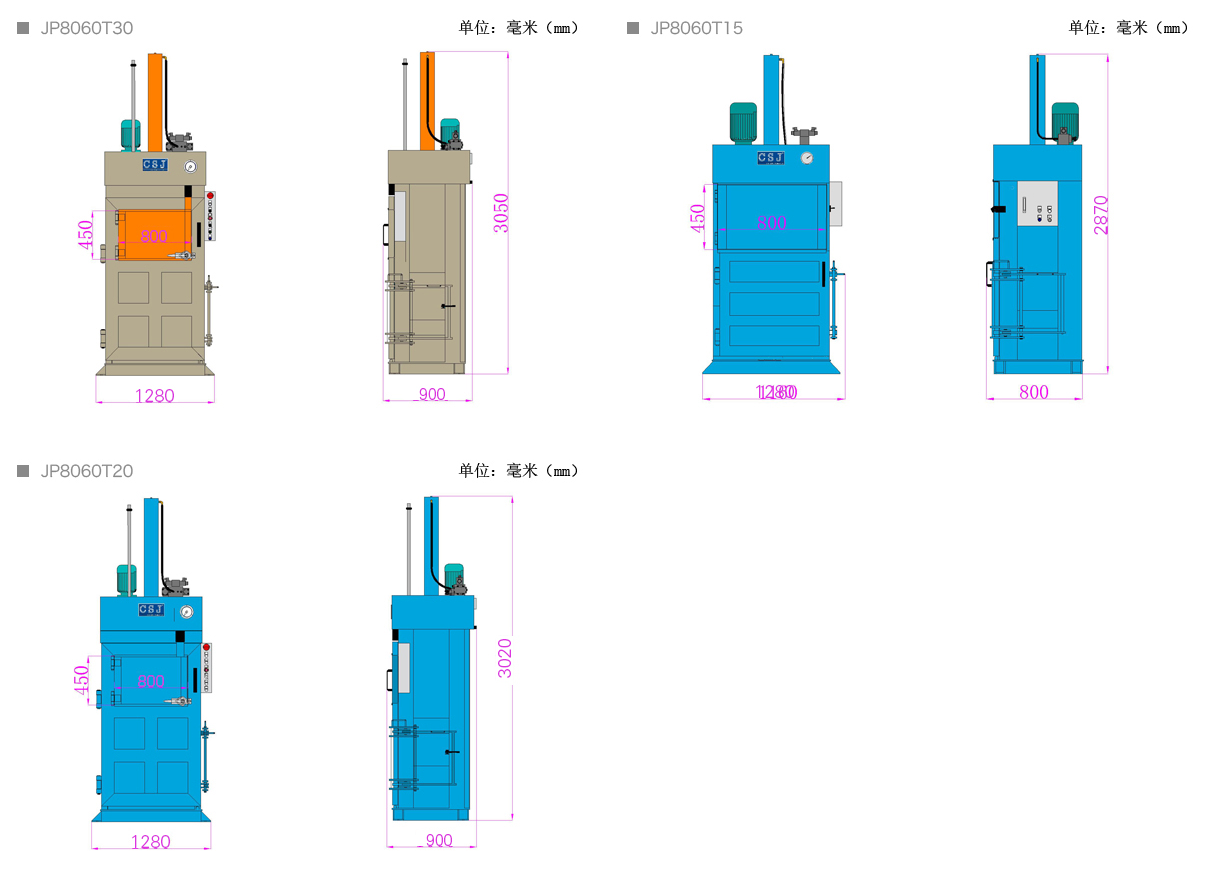

Dimensions
