Product video
PRODUCT DETAILS
*The way of double-column and four-door opening can realize the "#"-shaped bundling.
* Manual valve operation ,convenient and quick.
* Applicable to compress and pack materials that require outer packaging for textiles, clothing and other items.
* Simple installation and no base, safe and simple operation.
* It has the characteristics of high work efficiency and low energy consumption.
* It is a double-column structure frame, supplemented by two right-angle opening doors to achieve four doors.
* Adopt British imported seals to improve the service life of the oil cylinder.
* The oil pipe joints are connected in a tapered form without gaskets to avoid oil leakage.
Technical Parameters
| Model | JP-10SN | JP-15SN | JP-20SN |
| Compression force（Ton） | 10 | 15 | 20 |
| Bale size（L*W*H）mm | 600*400*(350-600) | 800*600*(350-600) | 900*700*(350-700) |
| Feed opening size（L*H）mm | 600*400 | 800*450 | 900500 |
| Chamber size（L*W*H）mm | 600*400*1200 | 800*600*1400 | 900*700*1500 |
| Bale weight（Bales/Hr） | 4-6 | 4-6 | 4-6 |
| Voltage（Customizable）（V/Hz） | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power（Kw/Hp） | 2.2Kw/3Hp | 3Kw/4Hp | 4Kw/5.5Hp |
| Machine size（L*W*H）mm | 1250*650*2300 | 1600*850*2600 | 1800*950*2800 |
| Machine weight（Kg） | 750 | 950 | 1200 |

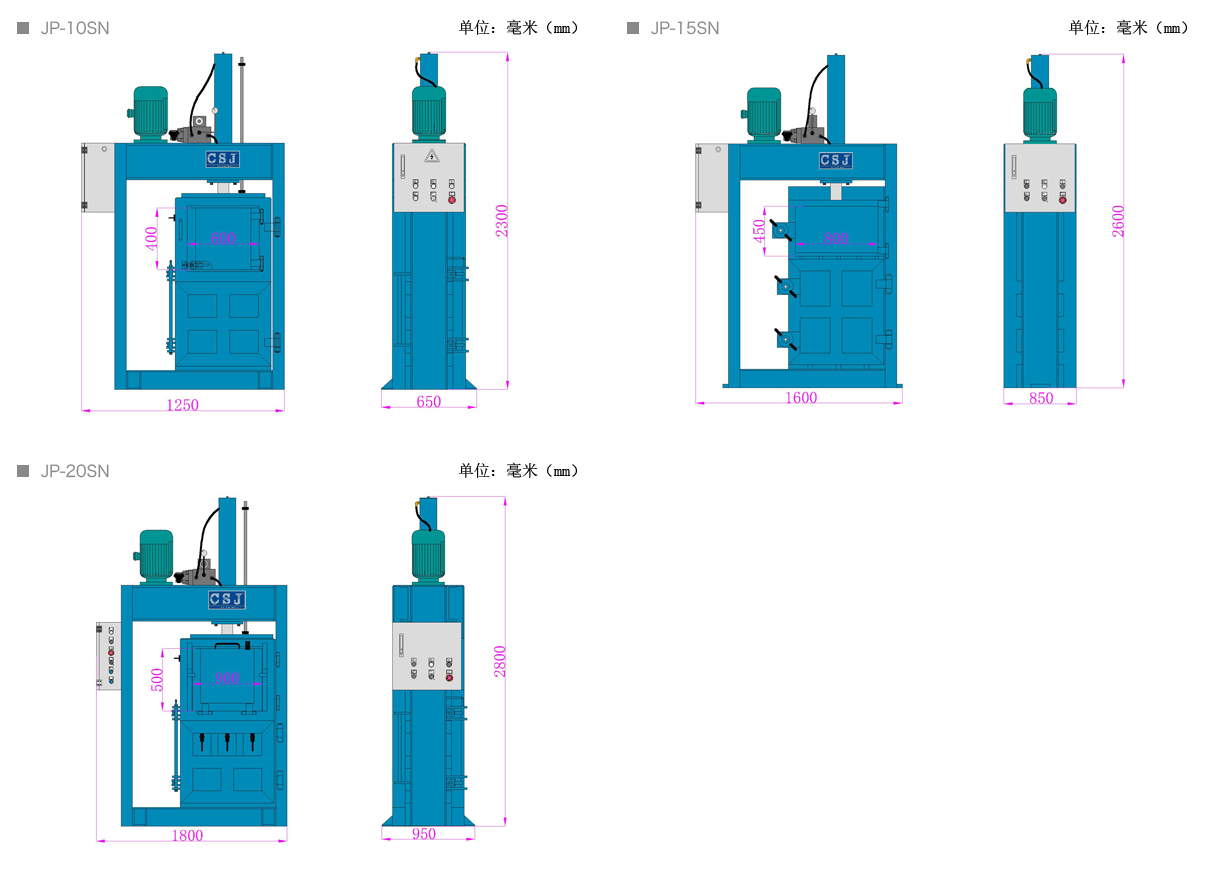

Dimensions
